OPTEX CTD-2500P-R 25 METER THRUBEAM M18 BARREL PNP 2M CABLE
Starting At: $109.76
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CTD-2500P-R
IMS Product Code: 1780349
Packaging: Sold Individually
Description:

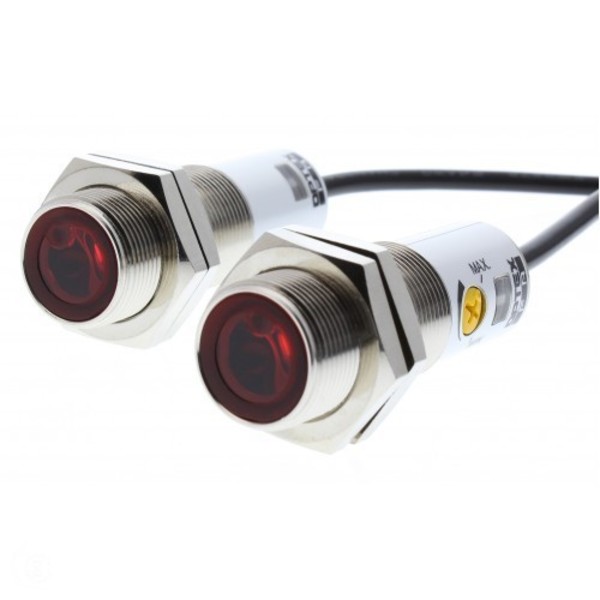

Optex CTD-2500P-R 25 Meter Thrubeam M18 Barrel PNP 2M Cable
The new CR thru beam sensor has long sensing range of up to 25 meters
The C-R Series uses hot melt molding that enables high vibration resistance and excellent water tightness.
Built in alignment indicator makes it very easy to align teh sensor even when sensing at long distances.
Specifications:
| Sensing Mode / Type | Thrubeam |
| Housing | Nickel plated brass |
| Sensing Distance | 25 meters |
| Light Source | Red LED |
| Beam Spot Ø Size / Distance Ø | 1600mm / 25 meters |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 45mA total |
| Response Time | .5 ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO by wire |
| Material | Housing: Nickel plated brass, lens: PMMA |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -25 to 55° C |
| Connection | 2m cable |
| Includes | (4) 18mm metal nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
