OPTEX CRD-400P-R 4 METER RETRO M18 PNP 2M CABLE
Starting At: $86.24
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CRD-400P-R
IMS Product Code: 1780341
Packaging: Sold Individually
Description:

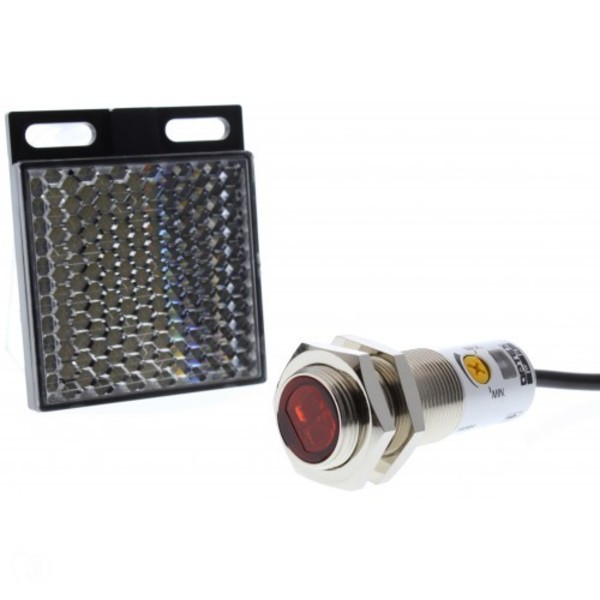

Optex CRD-400P-R 4 Meter Retro M18 PNP 2M Cable
The new CR Retroreflective sensor has long sensing range of up to 4 meters
The C-R Series uses hot melt molding that enables high vibration resistance and excellent water tightness.
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Housing | Nickel plated brass |
| Sensing Distance | 0.01 to 4 meters |
| Light Source | Red LED |
| Beam Spot Ø Size / Distance Ø | 240mm / 4 meters |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 25mA |
| Response Time | .5 ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO by wire |
| Material | Housing: Nickel plated brass, lens: PMMA |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -25 to 55° C |
| Connection | 2m cable |
| Includes | V-61 reflector & (2) 18mm metal nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
