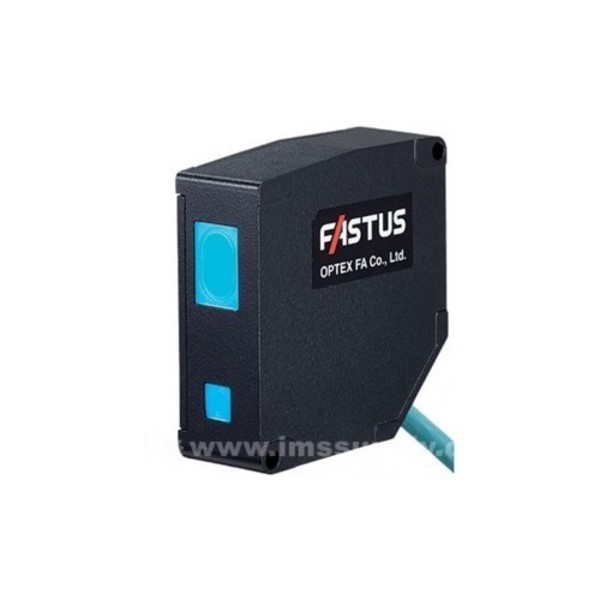

OPTEX CDX-W85 ULTRA-HIGH ACCURACY LASER DISPLACEMENT SENSOR
Starting At: $6,061.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CDX-W85
IMS Product Code: 1973966
Packaging: Sold Individually
Description:
Optex CDX-W85 Ultra-High Accuracy Laser Displacement Sensor, Specular Reflection Type, Wide Beam, 85mm (20mm Range), 0.3 Microns Accuracy, Network Capable, Optex Class 1 Laser Displacement Sensor Diffuse/specular Type W/ Wide Beam Spot, 70 X 2000µm At 85mm 85mm ±20mm Range, 0.1µm Resolution, High Speed Stand Alone Ethernet This Sensor Is Subject To “Export Trade Control Order" Inquire For Delivery
Specifications:
- Series: CDX
- Sensing Mode: Laser Displacement Reflective
- Self-Contained or Amp-Separate: Sensor Self-Contained
- Sensing Beam: Visible Red Laser Beam
- Beam Details: Red Semiconductor Laser, Wavelength 655nm, .39mW Max Output, Class I FDA, Class 1 IEC/JIS
- Optical Method: Diffuse
- Optical Beam Type: Wide beam
- Beam Size: 70 x 2000µm at 85mm
- Measurement Range: 85mm ±20mm
- Repeat Accuracy: 0.1µm
- Supply Voltage Details: 12 to 24VDC
- Fastest Sample Rate: 12.5µs
- Best Response Time: See Sample Rate
- Controller Features: CDA-M2 Controller accepts up to two CDX heads for providing digital or analog control of CDX sensor heads. Simple programming steps for thickness and height differences. Display: Dot matrix organic EL panel. Has 1 external input. When using this controller: Sensor Resolution is 10µm
- Sensor Features: Equipped with a Web server for Ethernet interface. Middle range diffuse type with ±0.03% of F.S linearity and 0.1µm resolution. This CDX sensor head is subject to “Export Trade Control Order" Please inquire for details.NOTE-SENSOR WARM-UP TIME 30 MINUTES
- Control Output & Communication: Digital, Analog, Ethernet
- Digital Output Details: See CDA-M Controller for Digital Out Specification
- Analog Output Details: See CDA-M Controller for Analog Specification
- Communication Details: Ethernet (100BASE-TX) IEEE1588
- Operating Temperature: –10 to +50° C
- Material: Die-cast aluminum, glass lens
- IP Rating: IP67
- Connection Type: Quick disconnect
- Connection Method: Pigtail 500mm with M12 8 pin male connector
- Item Weight: 0.60 lbs per EA
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
