OPTEX CDD-11P-IR 110MM INFRARED LIMIT DISTANCE DIFFUSE M18 PNP
Starting At: $93.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CDD-11P-IR
IMS Product Code: 1780338
Packaging: Sold Individually
Description:

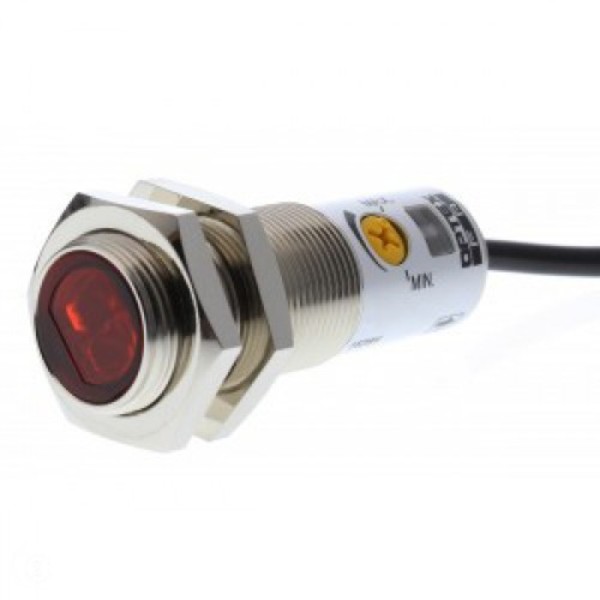

Optex CDD-11P-IR 110mm Infrared Limit Distance Diffuse M18 PNP 2M cable
Optex CDD-11P-IR 110mm Infrared Limit Distance Diffuse M18 PNP 2M cable
The new CR Diffuse sensor has sensing range of up to 1 meter for long range detection
The C-R Series uses hot melt molding that enables high vibration resistance and excellent water tightness.
Specifications:
| Sensing Mode / Type | Diffuse |
| Housing | Nickel plated brass |
| Sensing Distance | 110mm |
| Light Source | IR LED |
| Beam Spot Ø Size / Distance Ø | Ø5mm/110mm |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 25mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO Selectable by Wire |
| Material | Brass Ni Plated (housing) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | M18 metal locking nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
