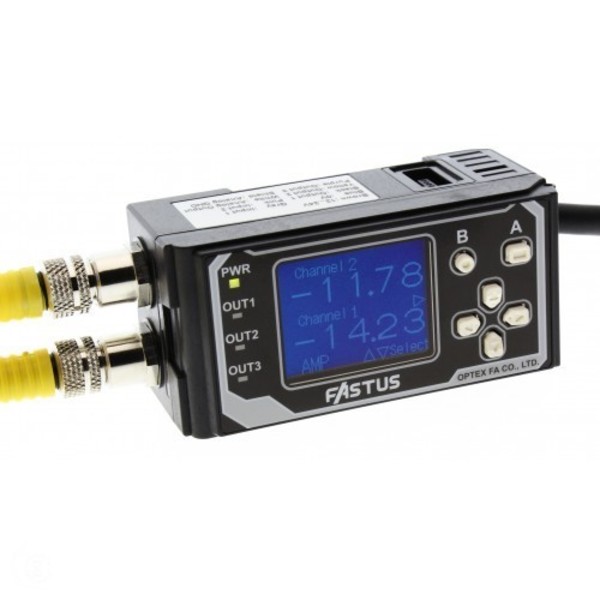

OPTEX CDA-S SUB CONTROLLER FOR CD22 AND CDX SERIES
Starting At: $793.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CDA-S
IMS Product Code: 1782899
Packaging: Sold Individually
Description:
Optex CDA-S Sub Controller for CD22 and CDX Series
The settings of the CD22 and CDX series can be adjusted in the CDA controller. Remote setting adjustment allows the CD22 to be installed in hard to reach areas of the machine. The CDA series can also perform level difference and thickness measurements with minimal settings when connected to two different displacement sensors. Requires CDA-M Master Controller
Controller can be Adjusted for NPN or PNP.
Up to 8 CDA units can be connected together for a total of 16 CD22 Sensors.
CD22 Sensors can be connected to CC-Link Communication throug the UC1 Series CC-Link communication unit.
Specifications:
| Description | Compact digital laser controller with digital LCD display for CDX Series and CD22 series w/RS-485 |
| Controller Type | Slave Unit |
| Input Voltage | Supplied from master |
| Max Number of Connectable Sensors | 2 each via M8 4P QD |
| Control Digital Outputs | 3 ea NPN/PNP selectable |
| Analog Output | 4 to 24VDC |
| Remote Input | 2 each |
| Temperature | -20 to +50° C |
| Protection | IP50 |
| Sensor Input Connection | 2 each M8 4P QD |
| Controller Power/Remote Input/Control Output Method | 2 meter cable / 8 conductor |
