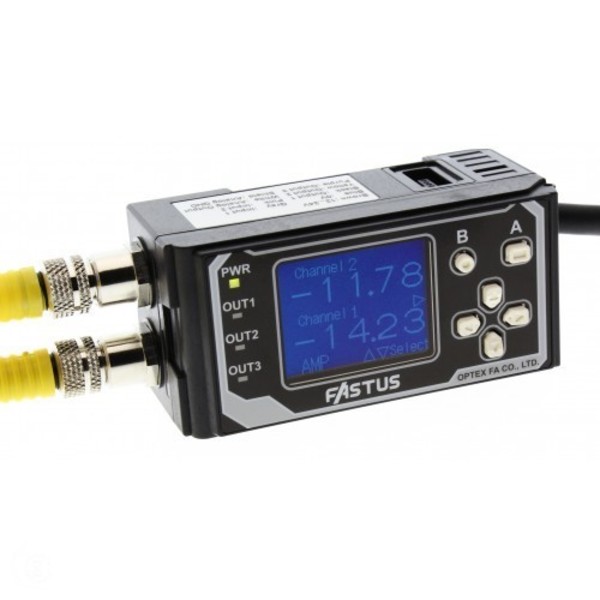

OPTEX CDA-M MASTER CONTROLLER FOR CD22 AND CDX SERIES
Starting At: $793.80
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CDA-M
IMS Product Code: 1782898
Packaging: Sold Individually
Description:
Optex CDA-M Master Controller for CD22 and CDX Series
The settings of the CD22 series and CDX can be adjusted in the CDA controller. Remote setting adjustment allows the CD22 and CDX Series to be installed in hard to reach areas of the machine. The CDA series can also perform level difference and thickness measurements with minimal settings when connected to two different displacement sensors.
Controller can be Adjusted for NPN or PNP.
Up to 8 CDA units can be connected together for a total of 16 CD22/CDX Sensors.
CD22 and CDX Sensors can be connected to CC-Link Communication throug the UC1 Series CC-Link communication unit.
Configuration diagram showing connection with CDX Series
Specifications:
| Description | Compact digital laser controller with digital LCD display for CDX Series and CD22 series w/RS-485 |
| Controller Type | Master Unit |
| Input Voltage | 12 to 24VDC |
| Max Number of Connectable Sensors | 2 each via M8 4P QD |
| Control Digital Outputs | 3 ea NPN/PNP selectable |
| Analog Output | 4 to 24VDC |
| Remote Input | 2 each |
| Temperature | -20 to +50° C |
| Protection | IP50 |
| Sensor Input Connection | 2 each M8 4P QD |
| Controller Power/Remote Input/Control Output Method | 2 meter cable / 8 conductor |
