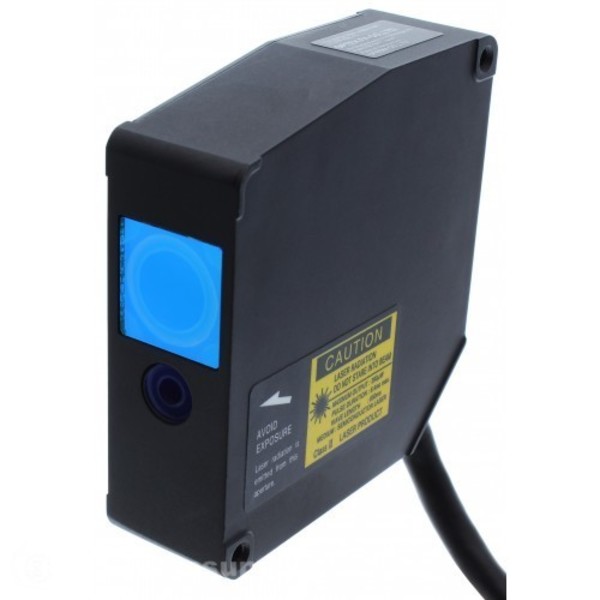

OPTEX CD5-L25A LASER MEASUREMENT SENSOR 24 TO 26MM RANGE NARROW
Starting At: $3,472.14
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD5-L25A
IMS Product Code: 1782525
Packaging: Sold Individually
Description:
Optex CD5-L25A Laser Measurement Sensor 24 to 26mm Range Narrow Beam American Version
Speculare version designed for both glass glass surface and glass thickness measurement
The linearity has been improved to more than twice that of a conventional product by digital sub-pixel processing. This divides one pixel into 65536 sub-pixels providing accurate profile reproduction.
Even if the object is translucent or its surface is eneven, it can detect the position of the true peak thanks to a custom algorithm designed by Optex
Cross talk prevention function eliminates interference between 2 sensor even when the beams are crossing or are mounted close together.
Specifications:
| Description | High Resolution Displacment Laser Sensor with RS-422 Serial Communication |
| Feature | Use as stand-alone, connected to PC, or connected to color/LCD controller |
| Sensing Mode | Specular Reflection |
| Supply Voltage | 12-24 VDC ±10% |
| Operation Temperature | -10 to +50° C |
| Measurement Range | 25mm ±1mm |
| Sensing Window | 24 to 26mm |
| Repeatability | 0.37µm |
| Light Source | Red Laser Diode |
| Wave Length | 650nm |
| Maximum Output | 390 µW |
| Laser Class IEC/JIS | Class 1 |
| Laser Class FDA | Class II |
| Beam Spot Type | Narrow |
| Laser Spot Size (Diffuse Reflective) | 25 x 35µm at 25mm |
| Linearity | ±0.08% F.S. |
| Temp Drift | ±0.01% /°C of F.S. |
| Digital Control Output | Choose CD5A Controller for NPN or PNP type |
| Analog Output | CD5A Controller provides ±10 VDC and 4-20mA |
| Serial Communication | CD5A Controller provides USB and RS-232 |
| Protection / Enclosure Type | IP67/Diecast Alum-Glass Lens |
| Connection | 500mm Pigtail w/12 Pin Conn |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
