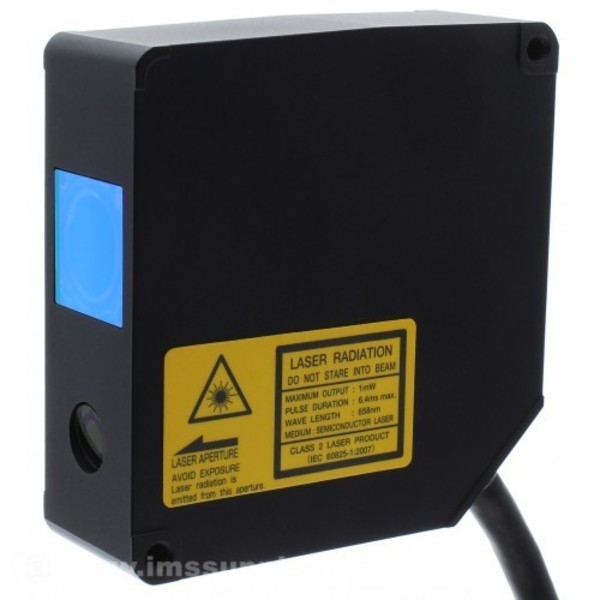

OPTEX CD5-150 LASER MEASUREMENT SENSOR 110 TO 190MM RANGE NARROW
Starting At: $3,472.14
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD5-150
IMS Product Code: 1782511
Packaging: Sold Individually
Description:
Optex CD5-150 Laser Measurement Sensor 110 to 190mm Range Narrow Beam
The linearity has been improved to more than twice that of a conventional product by digital sub-pixel processing. This divides one pixel into 65536 sub-pixels providing accurate profile reproduction.
Even if the object is translucent or its surface is eneven, it can detect the position of the true peak thanks to a custom algorithm designed by Optex
Cross talk prevention function eliminates interference between 2 sensor even when the beams are crossing or are mounted close together.
Specifications:
| Description | High Resolution Displacment Laser Sensor with RS-422 Serial Communication |
| Feature | Use as stand-alone, connected to PC, or connected to color/LCD controller |
| Sensing Mode | Diffuse Reflective or Specular Reflective |
| Supply Voltage | 12-24 VDC ±10% |
| Operation Temperature | -10 to +50° C |
| Measurement Range | 150mm ±40mm |
| Sensing Window | 110 to 190mm |
| Repeatability | 2µm |
| Light Source | Red Laser Diode |
| Wave Length | 650nm |
| Maximum Output | 1 mW |
| Laser Class IEC/JIS | Class 2 |
| Laser Class FDA | Class II |
| Beam Spot Type | Narrow |
| Laser Spot Size (Diffuse Reflective) | 300 x 1600µm at 150mm |
| Linearity | ±0.05% F.S. |
| Temp Drift | ±0.01% /°C of F.S. |
| Digital Control Output | Choose CD5A Controller for NPN or PNP type |
| Analog Output | CD5A Controller provides ±10 VDC and 4-20mA |
| Serial Communication | CD5A Controller provides USB and RS-232 |
| Protection / Enclosure Type | IP67/Diecast Alum-Glass Lens |
| Connection | 500mm Pigtail w/12 Pin Conn |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
