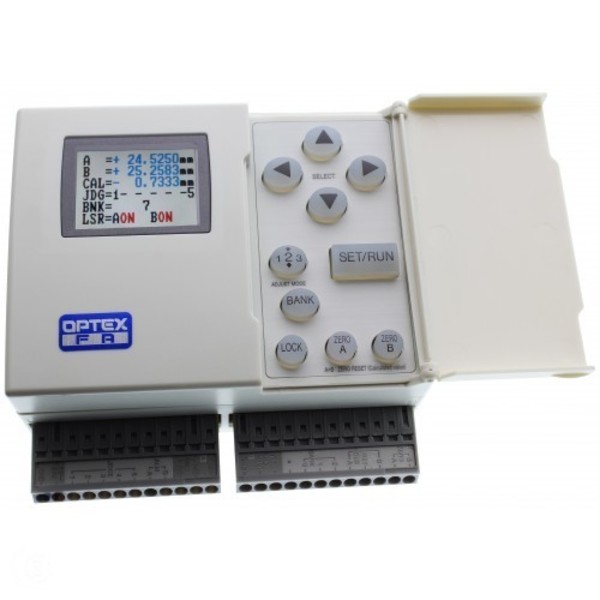

OPTEX CD4A-N LASER MEASUREMENT CONTROLLER FOR USE WITH THE CD4

MSRP: $840.00
Starting At: $772.80

Quick Overview

Manufactured By: OPTEX
Manufacturer Part Number: CD4A-N
IMS Product Code: 1782498
Packaging: Sold Individually

Description:

Optex CD4A-N Laser Measurement Controller For use with the CD4 Series Sensors NPN + Analog

The controller has the ability to perform math calculations such as thickness measurement when using 2 lasers. Independent measurement is also possible. Any combinnation of CD-30, CD4-85, CD4-350 can be connected to the controller.

The CD4A controller has a built in color display that indicates multiple data values on the same screen distance values from both heads, calculated value, output status, bank number, etc. are all displayed on the normal run screen.

5 indpendent outputs on the controller make it convenient for sorting items by size. Each of the 5 comparator outputs can be set independently all outputs have a high and low threshold limit.

10 Different formulas available to choose from including thickness measurement.

Specifications:

DescriptionController for up to Two CD4 Diffuse Reflective Sensors
Sensing ModeLCD Color Display for multiple data values. Distance value from both heads, calculated value, output status, bank number etc...
FeaturesA/B Outputs Judgement 1-5, and alarm. A/B Inputs: Bank select, Hold and Zero Reset
Supply Voltage12 to 24 VDC
Operation Temperature-10 to +45° C
Measurement Range
Sensing Window
Repeatability
Light Source
Wave Length
Maximum Output
Laser Class IEC / JIS
Laser Class FDA
Laser Spot Size (Diffuse Reflective)
Linearity
Temp Drift
Digital Control OutputController output: NPN
Analog OutputController output: ±5 VDC and 4 to 20mA
Serial CommunicationController Communication RS-232
Protection / Enclosure Type
Connection
