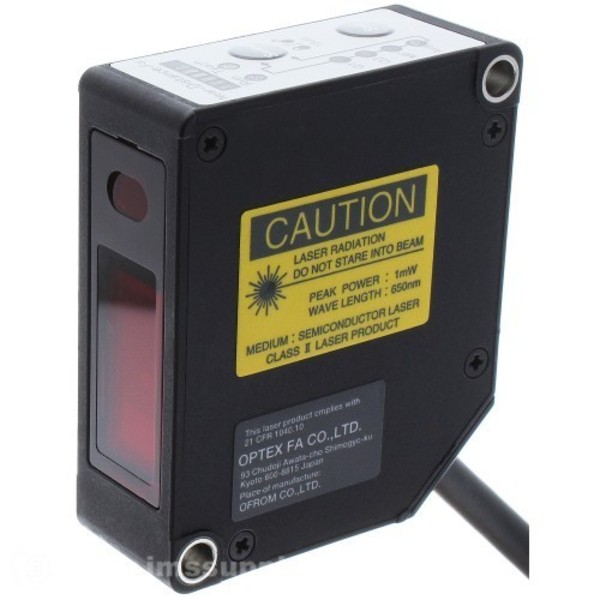

OPTEX CD33-L85PA SPECULAR 82.9MM ±10MM, 2CH PNP / 4-20MA, CABLE
Starting At: $1,078.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD33-L85PA
IMS Product Code: 1782483
Packaging: Sold Individually
Description:
Optex CD33-L85PA Specular 82.9mm ±10mm, 2ch PNP / 4-20mA, Cable
Specifications:
| Sensing Mode | Specular Reflection Type |
| Supply Voltage | 12-24VDC (-5% / +10%) |
| Operation Temperature | -10 to +45° C |
| Measurement Range | 82.9mm ±10mm |
| Sensing Window | 72.9 to 92.9mm |
| Repeatability | 5µm |
| Light Source | Red Laser Diode |
| Wave Length | 655nm |
| Maximum Output | 390 µW |
| Laser Class IEC / JIS | Class 1 |
| Laser Class FDA | Class II |
| Laser Spot Size (Diffuse Reflective) | 0.1 x 0.1mm at 85mm |
| Linearity | ±0.2% F.S. |
| Temp Drift | ±0.08% /°C of F.S. |
| Digital Control Output | 2 ea PNP output |
| Analog Output | 4-20mA |
| Serial Communication | None |
| Protection / Enclosure Type | IP67/PBT |
| Connection | 2m Cable |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
