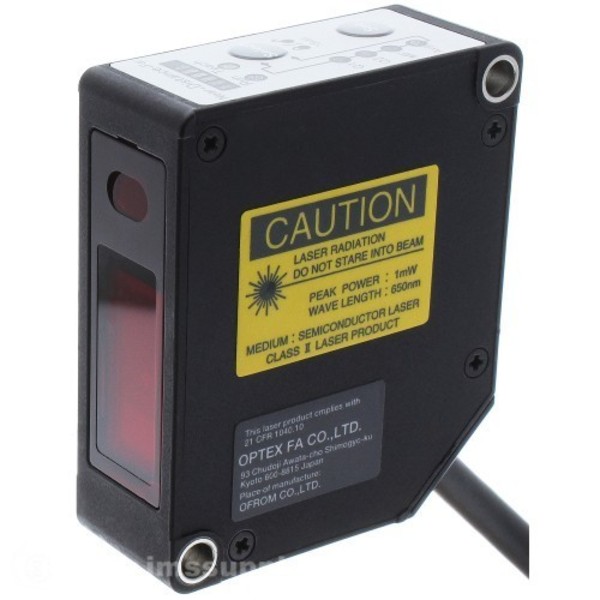

OPTEX CD33-L85NV SPECULAR 82.9MM ±10MM, 2CH NPN / 0-10VDC, CABLE
Starting At: $1,078.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD33-L85NV
IMS Product Code: 1782475
Packaging: Sold Individually
Description:
Optex CD33-L85NV Specular 82.9mm ±10mm, 2ch NPN / 0-10VDC, Cable
High accuracy 0 to 10 volt output version for measurement applications where linear output proportional to sensing distance is required. Also includes 2 digital outputs that can be used for comparator applications or use one for out of range alarm etc.
Ideal for mounting on robotic cylinder thanks to compact dimensions and light weight. IP67 water tightness is also secured.
High resolution electronic shtter controls to keep a constant level according to reflection. This function enables stable peak level detection even when unstable surface conditions exist.
Subpixel processing divides one pixel into small pieces that enables accurate measurement by reproducing genuine value of incoming lighte
The programmable remote MF intput can be set to one of the following laser off, external teach, hold, or one-shot trigger.
Specifications:
| Sensing Mode | Specular Reflection Type |
| Supply Voltage | 12-24VDC (-5% / +10%) 18-24VDC (-5% / +10%) when using 0-10 VDC Analog) |
| Operation Temperature | -10 to +45° C |
| Measurement Range | 82.9mm ±10mm |
| Sensing Window | 72.9 to 92.9mm |
| Repeatability | 5µm |
| Light Source | Red Laser Diode |
| Wave Length | 655nm |
| Maximum Output | 390 µW |
| Laser Class IEC / JIS | Class 1 |
| Laser Class FDA | Class II |
| Laser Spot Size (Diffuse Reflective) | 0.1 x 0.1mm at 85mm |
| Linearity | ±0.2% F.S. |
| Temp Drift | ±0.08% /°C of F.S. |
| Digital Control Output | 2 ea NPN output |
| Analog Output | 0-10 VDC |
| Serial Communication | None |
| Protection / Enclosure Type | IP67/PBT |
| Connection | 2m Cable |
