OPTEX CD33-L30N-422 SPECULAR 26.3MM +/- 2MM, 2CH NPN / RS-422
Starting At: $1,078.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD33-L30N-422
IMS Product Code: 1782405
Packaging: Sold Individually
Description:

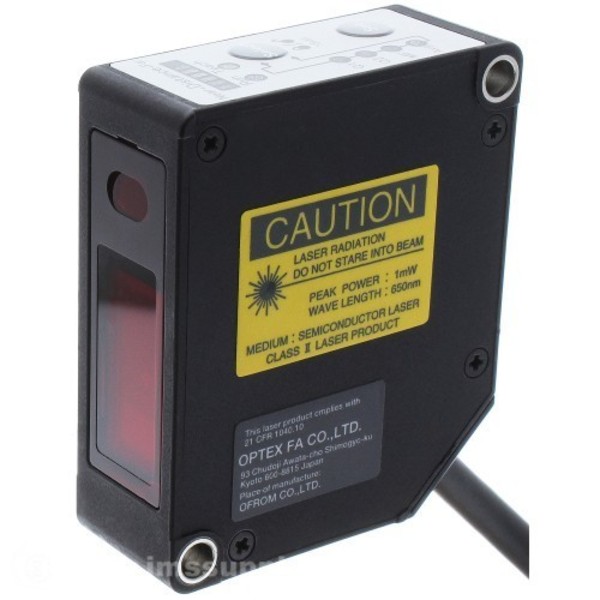

Optex CD33-L30N-422 Specular 26.3mm ±2mm, 2ch NPN / RS-422, Cable
The serial output version along with the software has the ability to measure glass thickness by calcualting the distance from 1st surface of glass to the bottom surface
RS-422 version provides digital output of measurement data over serial communications. There is a basic software application for communicating with the sensor via PC. The serial version can also be connected directly to the Melsec-Q series PLC when using the UQ1 controller. This controller provides an automatic and simple interface to the PLC. The best solution for measurement applications when using Mitsubishi Q series PLC.
Ideal for mounting on robotic cylinder thanks to compact dimensions and light weight. IP67 water tightness is also secured.
High resolution electronic shtter controls to keep a constant level according to reflection. This function enables stable peak level detection even when unstable surface conditions exist.
Subpixel processing divides one pixel into small pieces that enables accurate measurement by reproducing genuine value of incoming light
Specifications:
| Sensing Mode | Specular Reflection Type |
| Supply Voltage | 12-24VDC (-5% / +10%) |
| Operation Temperature | -10 to +45° C |
| Measurement Range | 26.3mm ±2mm |
| Sensing Window | 24.3 to 28.3mm |
| Repeatability | 1µm |
| Light Source | Red Laser Diode |
| Wave Length | 655nm |
| Maximum Output | 390 µW |
| Laser Class IEC / JIS | Class 1 |
| Laser Class FDA | Class II |
| Laser Spot Size (Diffuse Reflective) | 0.1 x 0.1mm at 30mm |
| Linearity | ±0.2% F.S. |
| Temp Drift | ±0.08% /°C of F.S. |
| Digital Control Output | 2 ea NPN output |
| Analog Output | None |
| Serial Communication | RS-422 |
| Protection / Enclosure Type | IP67/PBT |
| Connection | 2m Cable |
