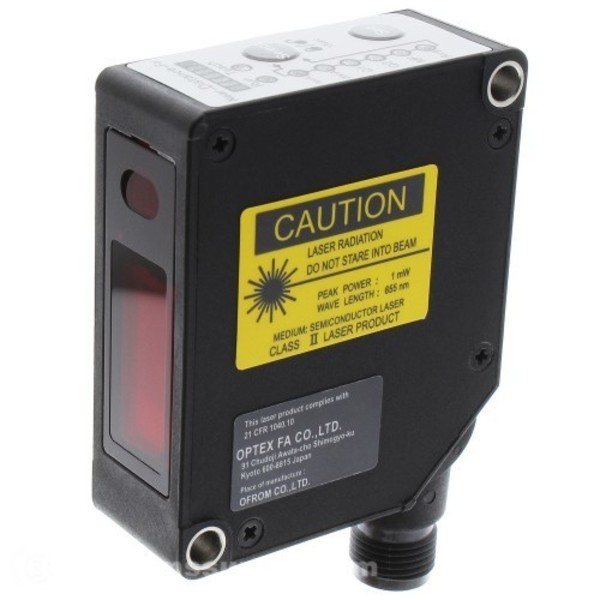

OPTEX CD33-120CN LASER MEASUREMENT SENSOR 60 TO 180MM M12 8 PIN
Starting At: $1,078.00
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: CD33-120CN
IMS Product Code: 1782156
Packaging: Sold Individually
Description:
Optex CD33-120CN Laser Measurement Sensor 60 to 180mm M12 8 Pin QD 2 NPN Outputs
Includes 2 digital outputs perfect for use in comparator applications such as the one pictured to the right. The sensor can determine whether the part is there or not there and whether ot not it is seated properly with the 2 digital outputs
Ideal for mounting on robotic cylinder thanks to compact dimensions and light weight. IP67 water tightness is also secured.
High resolution electronic shtter controls to keep a constant level according to reflection. This function enables stable peak level detection even when unstable surface conditions exist.
Subpixel processing divides one pixel into small pieces that enables accurate measurement by reproducing genuine value of incoming lighte
The programmable remote MF intput can be set to one of the following laser off, external teach, hold, or one-shot trigger.
Specifications:
| Sensor Type | Self-Contained CMOS Displacement Laser Measurement Sensor |
| Sensing Mode | Diffuse Reflective Type |
| Supply Voltage | 12-24VDC (-5% / +10%) |
| Operation Temperature | -10 to +45° C |
| Measurement Range | 120mm ±60mm |
| Sensing Window | 60 to 180mm |
| Repeatability | 30µm |
| Light Source | Red Laser Diode |
| Wave Length | 655nm |
| Maximum Output | 1 mW |
| Laser Class IEC / JIS | Class 2 |
| Laser Class FDA | Class II |
| Laser Spot Size | 1.0 x 1.5mm at 120mm |
| Linearity | ±0.3% F.S. |
| Temp Drift | ±0.08% /°C of F.S. |
| Digital Control Output | 2 ea NPN output |
| Analog Output | None |
| Serial Communication | RS-422 |
| Protection / Enclosure Type | IP67/PBT |
| Connection | M12 8 Pin QD Swivel Type |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
