OPTEX C2TM-2000CP METAL THRUBEAM 20M PNP M12 QD
Starting At: $86.24
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: C2TM-2000CP
IMS Product Code: 1780312
Packaging: Sold Individually
Description:

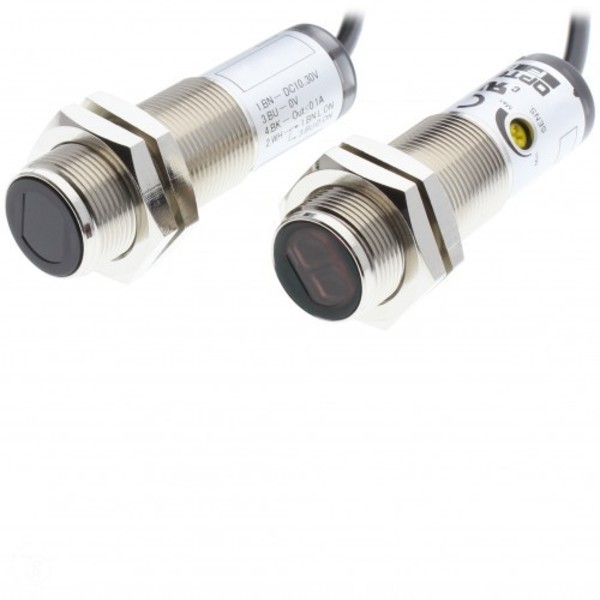

Optex C2TM-2000CP Metal Thrubeam 20M PNP M12 QD
The electronic circuit consists of Optex FA's custom ASIC (application specific integrated circuit) designed for extremely reliable operation. The custom design eliminates unnecessary components that could cause problems in chips designed for generic purposes.
Thrubeam models are available in metal or plastic barrel.
Specifications:
| Sensing Mode / Type | Thrubeam |
| Housing | Metal housing |
| Sensing Distance | 20 meter |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø1,100mm/20 meter |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 35mA |
| Response Time | 1ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO Selectable by Wire |
| Material | BSBM (housing) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -10 to 55° C |
| Connection | M12 4 pin QD |
| Includes | M18 metal locking nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
