OPTEX C2RP-350N PLASTIC NON-POL RETRO-REFL 3.5M NPN 2M CABLE
Starting At: $60.76
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: C2RP-350N
IMS Product Code: 1780278
Packaging: Sold Individually
Description:

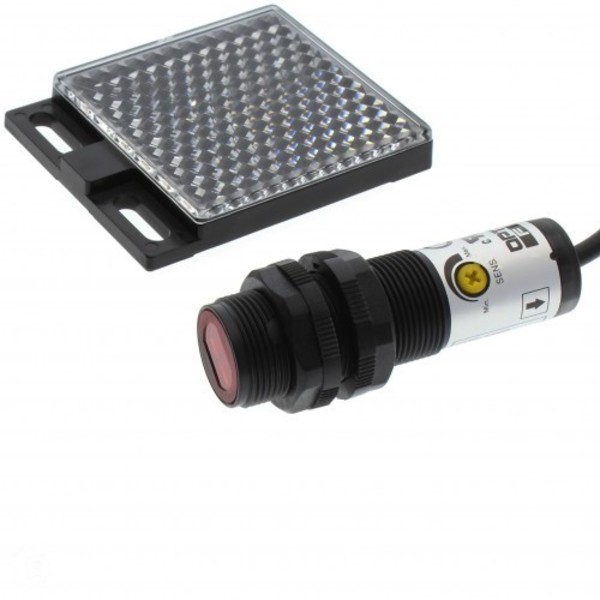

Optex C2RP-350N Plastic Non-Pol Retro-refl 3.5M NPN 2M cable
The electronic circuit consists of Optex FA's custom ASIC (application specific integrated circuit) designed for extremely reliable operation. The custom design eliminates unnecessary components that could cause problems in chips designed for generic purposes.
Retroreflective models are available in metal or plastic barrel.
Specifications:
| Sensing Mode / Type | Non-Polarized Retro-Reflective |
| Housing | Plastic housing |
| Sensing Distance | 0.01 to 3.5 meter |
| Light Source | Infrared LED |
| Beam Spot Size / Distance Ø | Ø240mm/3.5 meter |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 1ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | |
| Output | NPN |
| Output Operation Mode | LO/DO Selectable by Wire |
| Material | PBT (housing) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -10 to 55° C |
| Connection | 2 meter cable |
| Includes | M18 plastic locking nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
