OPTEX C2RM-SF400CP METAL 90 DEGREE POL RETRO-REFLECTIVE 4M PNP
Starting At: $76.44
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: C2RM-SF400CP
IMS Product Code: 1780270
Packaging: Sold Individually
Description:

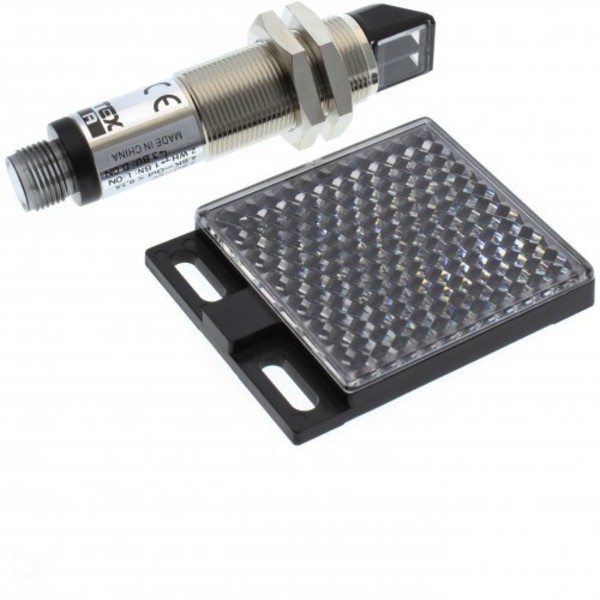

Optex C2RM-SF400CP Metal 90 degree Pol Retro-reflective 4M PNP M12 QD
The electronic circuit consists of Optex FA's custom ASIC (application specific integrated circuit) designed for extremely reliable operation. The custom design eliminates unnecessary components that could cause problems in chips designed for generic purposes.
Retroreflective models are available in metal or plastic barrel. Right angle version
Specifications:
| Sensing Mode / Type | Polarized Retro-Reflective |
| Housing | Metal housing |
| Sensing Distance | 0.01 to 4 meter |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø270mm/4 meter |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 1ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO Selectable by Wire |
| Material | BSBM (housing) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -10 to 55° C |
| Connection | M12 4 pin QD |
| Includes | M18 metal locking nuts |
