OPTEX C2RM-350CP METAL NON-POL RETRO-REFL 3.5M PNP M12 QD
Starting At: $66.64
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: C2RM-350CP
IMS Product Code: 1780255
Packaging: Sold Individually
Description:

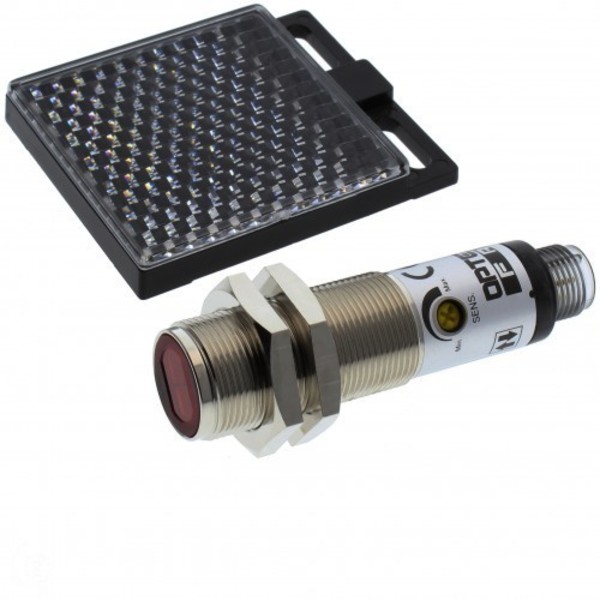

Optex C2RM-350CP Metal Non-Pol Retro-refl 3.5M PNP M12 QD
The electronic circuit consists of Optex FA's custom ASIC (application specific integrated circuit) designed for extremely reliable operation. The custom design eliminates unnecessary components that could cause problems in chips designed for generic purposes.
Retroreflective models are available in metal or plastic barrel.
Specifications:
| Sensing Mode / Type | Non-Polarized Retro-Reflective |
| Housing | Metal housing |
| Sensing Distance | 0.01 to 3.5 meter |
| Light Source | Infrared LED |
| Beam Spot Size / Distance Ø | Ø240mm/3.5 meter |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 1ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | |
| Output | PNP |
| Output Operation Mode | LO/DO Selectable by Wire |
| Material | BSBM (housing) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -10 to 55° C |
| Connection | M12 4 pin QD |
| Includes | M18 metal locking nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
