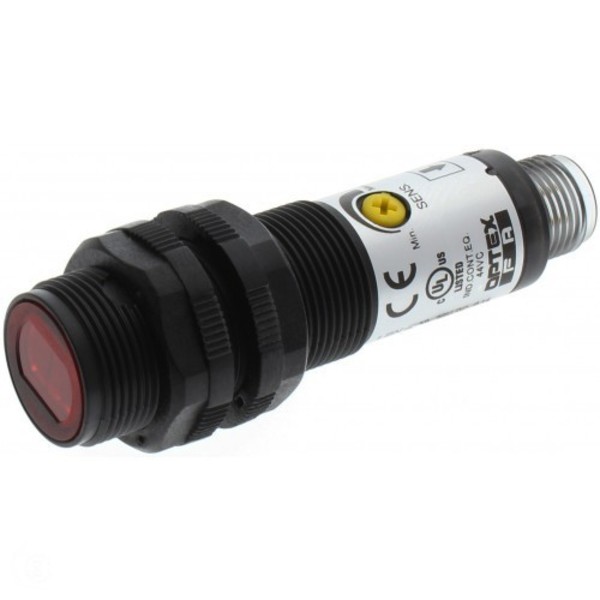

OPTEX C2DP-11CN PLASTIC DIFFUSE 110MM NPN M12 QD
Starting At: $63.70
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: C2DP-11CN
IMS Product Code: 1780219
Packaging: Sold Individually
Description:
Optex C2DP-11CN Plastic Diffuse 110mm NPN M12 QD
The electronic circuit consists of Optex FA's custom ASIC (application specific integrated circuit) designed for extremely reliable operation. The custom design eliminates unnecessary components that could cause problems in chips designed for generic purposes.
Diffuse models are available in metal or plastic barrel.
Specifications:
| Sensing Mode / Type | Diffuse |
| Housing | Plastic housing |
| Sensing Distance | 110mm |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø8mm/110mm |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 1ms |
| Sensitivity Adjustment | 1-turn potentiometer |
| Hysteresis | 0.1 |
| Output | NPN |
| Output Operation Mode | LO/DO Selectable by Wire |
| Material | PBT (housing) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -10 to 55° C |
| Connection | M12 4 pin QD |
| Includes | M18 plastic locking nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
