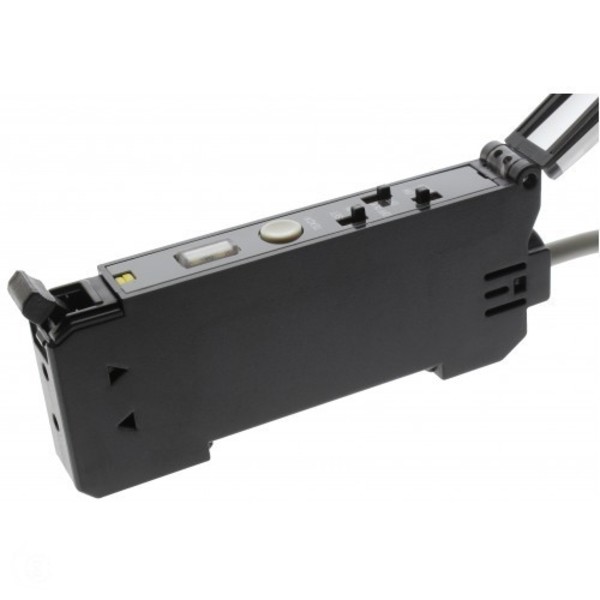

OPTEX BRF-HTN FIBER OPTIC AMP RED LED 50µS RESPONSE PB TEACH 2M
Starting At: $132.48
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BRF-HTN
IMS Product Code: 1780160
Packaging: Sold Individually
Description:
Optex BRF-HTN Fiber Optic Amp Red LED 50µs Response PB Teach 2M Cbl NPN
All models feature a bright stability and output operation indicators, pushbutton teach and remote teach
All models include fiber insertion indicator that confirms the fiber optic cable is inserted properly
The BRF series includes gasketed cover and provides IP66 protection. This allows the sensor to be mounted outside of panels if needed in most applications.
Specifications:
| Sensing Mode - Type | Fiber Optic Amplifier |
| Features | Push Button Teach |
| Sensitivity Adjustment | Teach methods include: Maximum, 1-pt teach, 2-pt teach, position teach, and dynamic teach |
| Supply Voltage | 10 to 30 VDC |
| Light Source | Red LED |
| Indicators | Output: Orange, Stability: Green |
| Model Type | Stand-Alone Type |
| Cross-Talk Prevention | |
| LED Power Level Control | |
| Current Consumption | 30mA |
| Response Time | 50µs |
| Output | NPN |
| Output Operation Mode | Light-on / dark-on selectable |
| Timer/Counter Option | Selectable 40ms fixed 0ff-delay |
| Shock Rating | 50G |
| Protection | IP66 |
| Temperature | -25 to +55° C |
| Connection | 2 meter cable |
| Includes | Screw mounting DIN bracket |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
