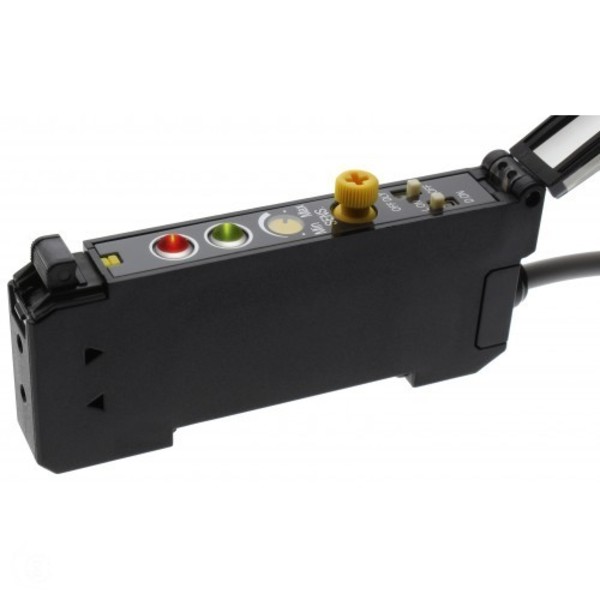

OPTEX BRF-HN FIBER OPTIC AMP RED LED RESPONSE 10-TURN POT 2M
Starting At: $93.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BRF-HN
IMS Product Code: 1780148
Packaging: Sold Individually
Description:
Optex BRF-HN Fiber Optic Amp Red LED 50µs Response 10-turn pot 2M Cbl NPN
All models featurea bright stability and output operation indicators, 40ms pulse stretcher and easy turn adjustment knob for sensitivity adjustment
All models include fiber insertion indicator that confirms the fiber optic cable is inserted properly
The BRF series includes gasketed cover and provides IP66 protection. This allows the sensor to be mounted outside of panels if needed in most applications.
Specifications:
| Sensing Mode - Type | Fiber Optic Amplifier |
| Features | Low Cost and Tough Mechanics |
| Sensitivity Adjustment | 10-turn potentiometer |
| Supply Voltage | 10 to 30 VDC |
| Light Source | Red LED |
| Indicators | Orange LED (output) Green LED (stability) |
| Model Type | Stand-Alone Type |
| Cross-Talk Prevention | Up to 4 amplifiers |
| LED Power Level Control | |
| Current Consumption | 30mA |
| Response Time | 50µs |
| Output | NPN |
| Output Operation Mode | Light-on / dark-on switch selectable |
| Timer/Counter Option | 40ms off-delay switch selectable |
| Shock Rating | 50G |
| Protection | IP66 |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | BEF-WLL170 DIN bracket |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
