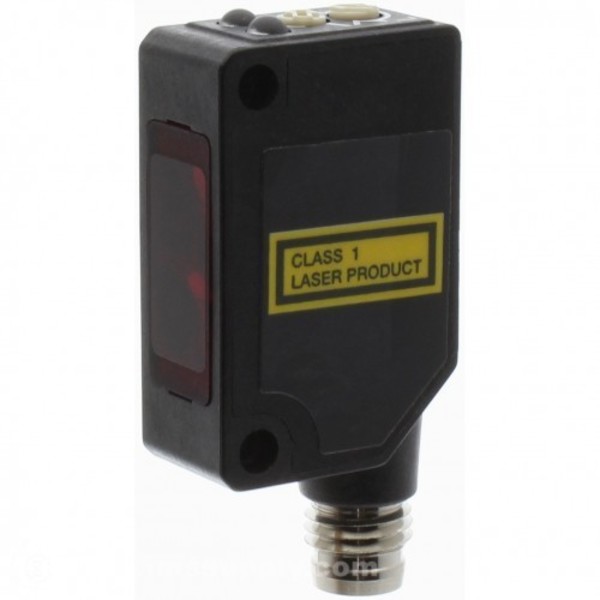

OPTEX BGS-ZL30CN 300MM BACKGROUND SUPPRESSION LASER NPN M8 4 PIN
Starting At: $164.64
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-ZL30CN
IMS Product Code: 1780070
Packaging: Sold Individually
Description:
Optex BGS-ZL30CN 300mm background Suppression Laser NPN M8 4 Pin QD
Laser basckground suppression sensors designed in a very compact housing with the ability to detect different colored and textured objects at the same distance and not be influenced by background objects.
1mm beam spot at 100mm for the 100mm sensing version and only 1.5mm beam spot at 300mm for the 300mm distance version.
2 sensors can be mounted side by side because of built in cross-talk prevention.
High Speed response great for fast moving objects.
Specifications:
| Sensing Mode | Background Suppression |
| Features | Compact size sensor eliminates background sensing problems |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 30mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | 4.7mW |
| FDA Laser Class | Class II |
| Sensing Distance | 50 to 300mm |
| Spot Size | Ø1.5mm at 300mm |
| Repeatability | 0.3mm |
| Hysteresis | 5% |
| Sensitivity Adjustment | Potentiometer 4-turn |
| Display | LED Indicator |
| External Input | Laser Off |
| Response Time | 250µs |
| Control Output | NPN |
| Timing Option | N/A |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | M8 4P QD |
| Includes | BEF-W100-A Mounting Bracket |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
