OPTEX BGS-Z10CP BACKGROUND SUPPRESSION20 TO 100MM PNP M8 4 PIN QD
Starting At: $91.14
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-Z10CP
IMS Product Code: 1780042
Packaging: Sold Individually
Description:

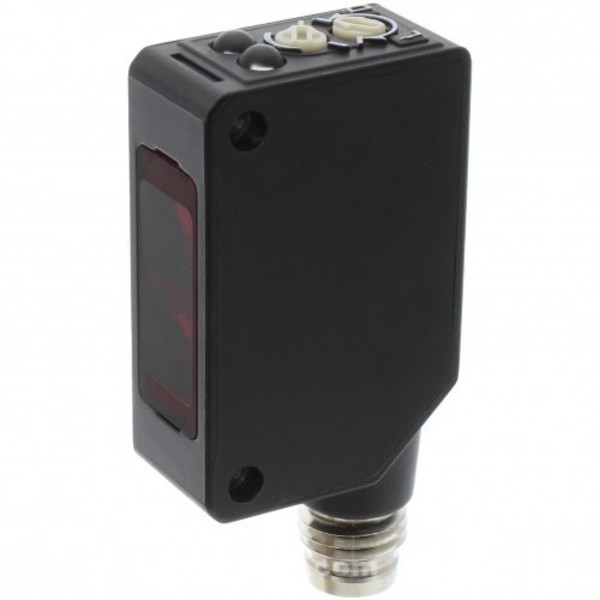

Optex BGS-Z10CP Background Suppression 20 to 100mm PNP M8 4 Pin QD
The BGS-Z Series Red LED background suppression sensors are a great choice for detecting many different reflective objects at the same distance and ignore shiny backgrounds
With a repeat accuracy of 0.2mm to 0.3mm the BGS-Z Series is a great choice when positioning accuracy is important
The LED beam spot can be seen easily even in bright environments making it easier to install
Specifications:
| Sensing Mode / Type | Background Suppression |
| Special Features | |
| Sensing Distance | 20 to 100mm |
| Resolution / Min Detectable Object | 0.3mm or less |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | .5ms |
| Sensitivity Adjustment | 4-turn potentiometer |
| Output | PNP |
| Output Operation Mode | LO/DO Switch Selectable |
| Material | ABS (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | Mounting bracket/screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
