OPTEX BGS-Y8CN BACKGROUND SUPPRESSION 200MM NPN-LO/DO M8 QD
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-Y8CN
IMS Product Code: 1780026
Packaging: Sold Individually
Description:

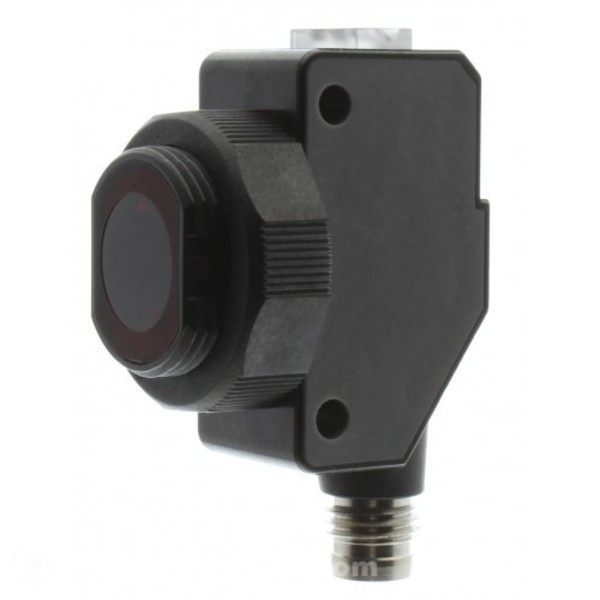

Optex BGS-Y8CN Background Suppression 200mm NPN-LO/DO M8 QD
BGS (Background Suppression) sensors are not influenced by the color or texture of the target, the sensor is also able to ignore changes in background.
The sensor can easily be mounted by inserting into an 18mm opening. There are also conventional mounting holes holes in the sensor body for added flexibility
Specifications:
| Sensing Mode / Type | Background Suppression |
| Sensing Distance | 200mm |
| Resolution / Min Detectable Object | |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 30mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 4-turn potentiometer |
| Output | 2 each NPN |
| Output Operation Mode | LO and DO |
| Material | ABS w/20% glass (case) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | M8 4 pin QD |
| Includes | M18 threaded mounting nut |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 2 to 3 Days
