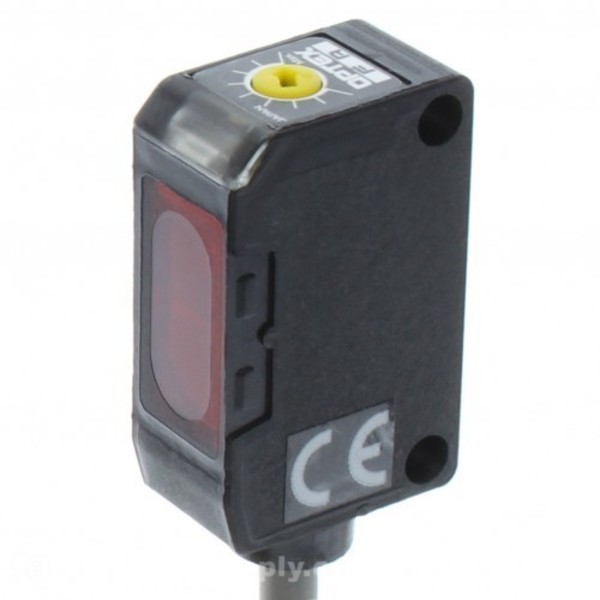

OPTEX BGS-S08N BACKGROUND SUPPRESSION 10 TO 80MM NPN 2M CABLE
Starting At: $132.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-S08N
IMS Product Code: 1780010
Packaging: Sold Individually
Description:
Optex BGS-S08N Background Suppression 10 to 80mm NPN 2M cable
Background suppression sensors in a 17X10X20 mm enclosure. Perfect for applications requiring BGS technology but need to be placed in really small OEM equipment.
Specifications:
| Sensing Mode | Background Suppression |
| Sensing Distance | 10 to 80mm |
| Min Detectable Object/Hysteresis | 0.1 |
| Light Source | Red LED |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 20mA |
| Response Time | 0.5ms |
| Sensitivity Adjustment | 5-turn potentiometer |
| Output | NPN |
| Output Operation Mode | Light-On / Dark-On switch selectable |
| Timer | |
| Enclosure | PBT with glass (case), PC lens |
| Protection | IP67 |
| Shock Rating | 100G |
| Temperature | -25 to 55° C |
| Connection | 2 meter cable |
| Includes | BEF-W150-B brackets & screws |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
