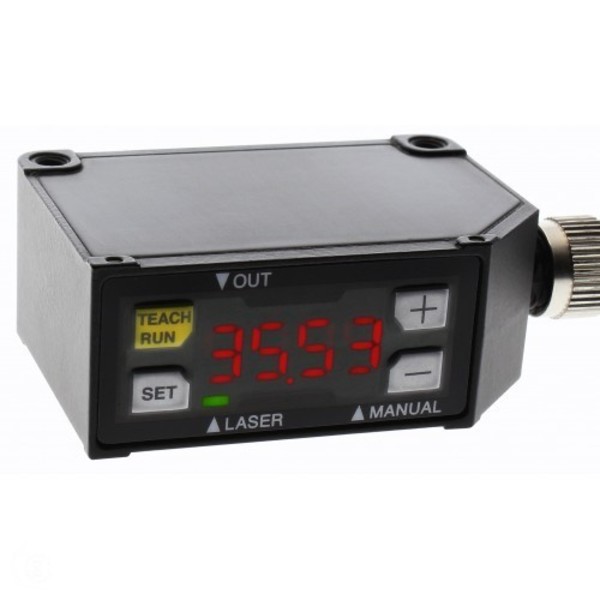

OPTEX BGS-HL05TC DIGITAL LASER 20-50MM M8 QD NPN/PNP
Starting At: $534.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-HL05TC
IMS Product Code: 1779995
Packaging: Sold Individually
Description:
Optex BGS-HL05TC Digital Laser 20-50mm M8 QD NPN/PNP
- Minimum detectable height difference = 0.08 mm (50mm Type)
- Built-in controller 4 digit display Stable detection regardless of object color
- 2 distances 20 to 50mm and 50 to 250mm available Selectable NPN/PNP Output
By combining 3 separate processes Digital Sub Pixel Processing, High Resolution Electronic Shutter, and Automatic Sampling mode the BGS-HL Series from Optex is able to achieve Precise height differential detection regardless of color and material.
Subpixel processing divides one pixel into sub pixels and enables accurate detection of peak.
In addition to standard feedback, received light to laser power, BGS-HL has Automatic Sampling function which enables stable detection of metal surface and also black material by adjusting sampling speed.
Specifications:
| Sensing Mode | High Precision Background Suppression |
| Minimum Detectable Height Difference | Able to detect height difference of 8µm, Reflective surfaces as well as shiny targets |
| Operation Voltage | 12 to 24VDC |
| Current Consumption | 40mA |
| Light Source | Red Laser Diode 655nm |
| Light Source Output | Max 390µW |
| FDA Laser Class | Class II |
| Sensing Distance | 20 to 50mm |
| Spot Size | Ø0.8mm at 35mm |
| Repeatability | 0.01mm |
| Hysteresis | 0 to 22.49mm adjustable |
| Sensitivity Adjustment | Teaching - Manual/Remote Input |
| Display | 7 segment 4 digit LED |
| External Input | Laser Off, Teaching, Sample or Hold, One Shot |
| Response Time | 1.5 ~ 7.5ms |
| Control Output | 1 Each Programmable NPN/PNP |
| Timing Option | On-delay, Off-delay, and One shot |
| Housing | Aluminum |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | 2m cable |
| Includes | BEF-0D1-B Mounting Bracket |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
