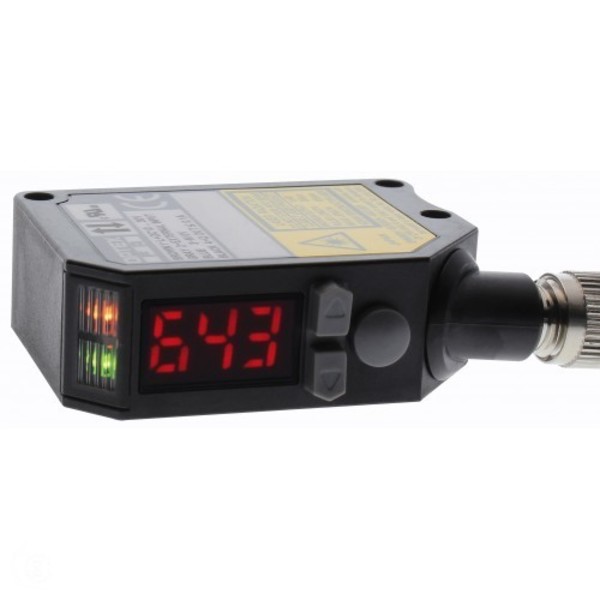

OPTEX BGS-DL10TCP(E) CMOS BACK GROUND SUPPRESSION LASER
Starting At: $240.10
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-DL10TCP(E)
IMS Product Code: 1779973
Packaging: Sold Individually
Description:
Optex BGS-DL10TCP(E) CMOS Back Ground Suppression Laser 40 to 100mm M8 QD PNP
The BGS-DLT Series incorporates utilizes a CMOS linear image sensor that provides excellent stability and accuracy regardless of color or reflectivity. Making this sensor a perfect choice for almost any background suppression application
Repeat Accuracy of the BGS-DLT sensor is 0.2 - 0.3mm making this sensor an ideal choice for precision sensing applications.
In addition to a teach button there are also two threshold adjustment buttons. Fine adjustments can be made to the threshold value after teaching by using the adjustment buttons.
The BGS-DLT sensors have an FGS function built in. The FGS sensor detects any objects, thin, black, rough and reflective, on the surface of a conveyor.
Specifications:
| Sensing Mode | High Accuracy Background/Foreground Suppression |
| Features | Digital CMOS Image sensor provides accurate method sensing for shiny to black targets. |
| Operation Voltage | 10 to 30VDC |
| Current Consumption | 50mA |
| Light Source | Red Laser Diode 650nm |
| Light Source Output | Max 1mW 300s |
| FDA Laser Class | Class II |
| Sensing Distance | 40 to 100mm |
| Spot Size | Ø1mm at 80mm |
| Repeatability | 0.3mm at 100mm |
| Hysteresis | 3% at 80mm |
| Sensitivity Adjustment | Teaching - Manual/Remote Input |
| Display | 7 segment 3 digit LED |
| External Input | Laser Off or Teaching |
| Response Time | 1.5ms |
| Control Output | PNP |
| Timing Option | On-delay, Off-delay, and One shot |
| Housing | ABS |
| Operation Temperature | -10 to +50° C |
| Protection | IP 67 |
| Connection | M8 4P QD |
| Includes | BEF-W100-A Mtg Brkt |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
