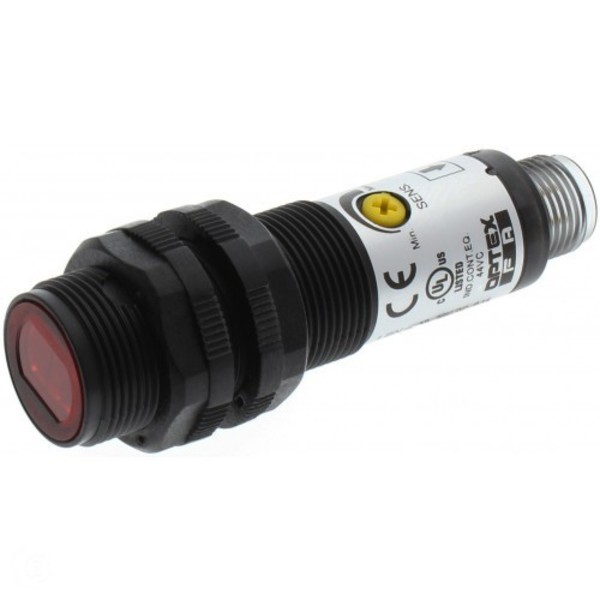

OPTEX BGS-CP30CP PLASTIC BACKGROUND SUPPRESSION 300MM PNP M12 QD
Starting At: $92.12
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-CP30CP
IMS Product Code: 1779958
Packaging: Sold Individually
Description:
Optex BGS-CP30CP Plastic Background Suppression 300mm PNP M12 QD
The electronic circuit consists of Optex FA's custom ASIC (application specific integrated circuit) designed for extremely reliable operation. The custom design eliminates unnecessary components that could cause problems in chips designed for generic purposes.
Background suppression technology built into an 18mm housing provides very reliable detection and flexible mounting options. Sensing distances up to 300mm
Background suppression models are available in metal or plastic barrel. Axial type (straight) only.
Specifications:
| Sensing Mode / Type | Background Suppression |
| Housing | Plastic housing |
| Sensing Distance | 30 to 300mm |
| Light Source | Red LED |
| Beam Spot Size / Distance Ø | Ø15mm/300mm |
| Supply Voltage | 10 to 30 VDC |
| Current Consumption | 35mA |
| Response Time | 1ms |
| Sensitivity Adjustment | 4-turn potentiometer |
| Hysteresis | 0.1 |
| Output | PNP |
| Output Operation Mode | LO/DO Selectable by Wire |
| Material | PBT (housing) PMMA (lens) |
| Protection | IP67 |
| Shock Rating | 50G |
| Temperature | -10 to 55° C |
| Connection | M8 4 pin QD |
| Includes | M18 plastic locking nuts |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
