OPTEX BGS-CM30N METAL HOUSING BACKGROUND SUPPRESSION 300MM
Starting At: $99.96
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-CM30N
IMS Product Code: 1779947
Packaging: Sold Individually
Description:

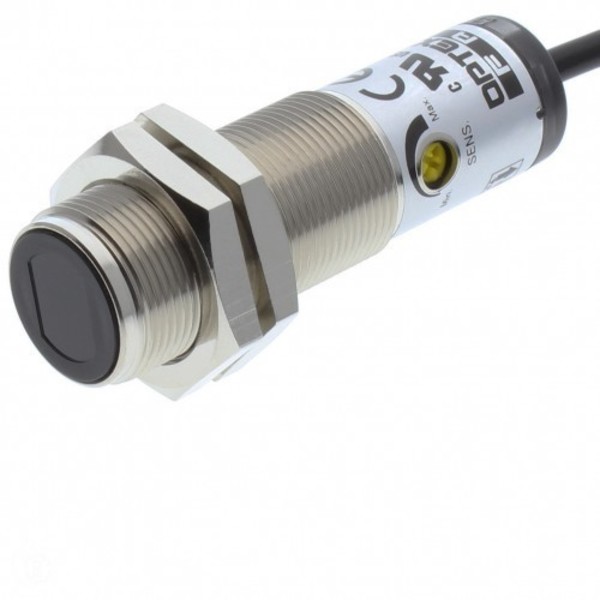

Optex BGS-CM30N Metal Housing Background Suppression 300mm NPN - 2M Cable
The electronic circuit consists of Optex FA's custom ASIC (application specific integrated circuit) designed for extremely reliable operation. The custom design eliminates unnecessary components that could cause problems in chips designed for generic purposes.
Background suppression technology built into an 18mm housing provides very reliable detection and flexible mounting options. Sensing distances up to 300mm
Background suppression models are available in metal or plastic barrel. Axial type (straight) only.
Specifications:
- Sensing Mode / Type Background Suppression
- Housing Metal housing
- Sensing Distance 30 to 300mm
- Light Source Red LED
- Beam Spot Size / Distance Ø Ø15mm/300mm
- Supply Voltage 10 to 30 VDC
- Current Consumption 35mA
- Response Time 1ms
- Sensitivity Adjustment 4-turn potentiometer
- Hysteresis 0.1
- Output NPN
- Output Operation Mode LO/DO Selectable by Wire
- Material BSBM (housing) PMMA (lens)
- Protection IP67
- Shock Rating 50G
- Temperature -10 to 55° C
- Connection 2 meter cable
- Includes M18 metal locking nuts
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
