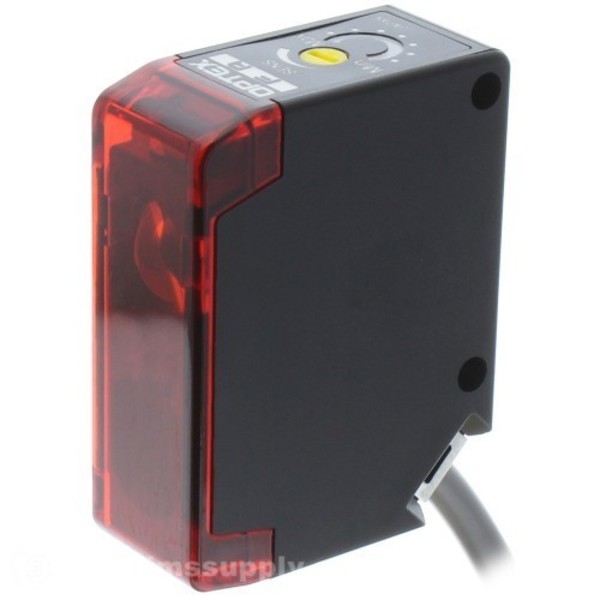

OPTEX BGS-30N BACKGROUND SUPPRESSION 100 TO 300MM NPN 2M CABLE
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-30N
IMS Product Code: 1779940
Packaging: Sold Individually
Description:
Optex BGS-30N Background Suppression 100 to 300mm NPN 2M cable
The BGS Series utilizes a very focused beam. The beam spot is 10mm in diameter at a 100mm sensing distance. This allows for stable detection even on parts that are sloped or rounded.
The adjustment potentiometer is very sturdy and is very easy to adjust sensitivity
Specifications:
- Sensing Mode / Type Background Suppression
- Sensing Distance 100 to300mm
- Light Source Red LED
- Supply Voltage 10 to 30 VDC
- Current Consumption 25mA
- Response Time 2ms
- Sensitivity Adjustment Multi-Turn Potentiometer
- Hysteresis 0.05
- Output NPN
- Output Operation Mode LO/DO Switch Selectable
- Protection IP67
- Shock Rating 50G
- Temperature -25 to 55° C
- Connection 2m cable
- Includes Mounting bracket/screws
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
