OPTEX BGS-2V30P BACKGROUND SUPPRESSION 100 TO 300MM PNP 2M CABLE
Starting At: $116.62
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V30P
IMS Product Code: 1779927
Packaging: Sold Individually
Description:

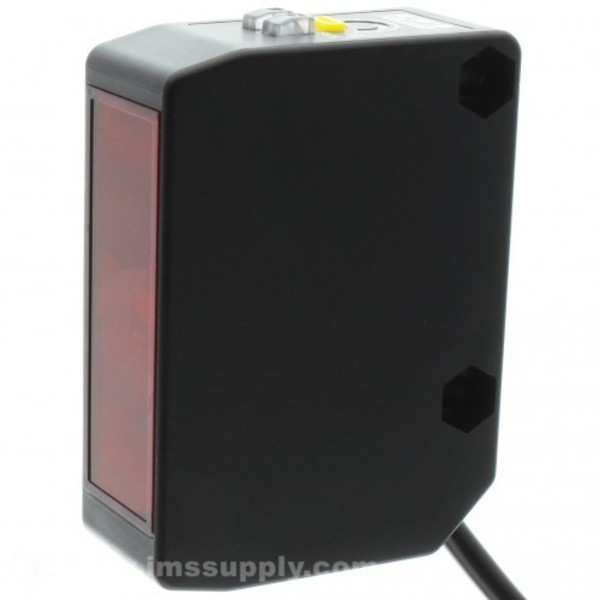

Optex BGS-2V30P Background Suppression 100 to 300mm PNP 2M cable
A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.
The BGS-2V30 sensor is capabale of detecting various reflective objects out to 300mm without being influence by background object. Below is a color response chart.
The connector rotates 90 degrees for added flexibility when mounting. IP67 is maintained even with the connector
10 to 30VDC with PNP Output. Light ON / Dark ON selected by wiring.
Specifications:
- Sensing Mode / Type Background Suppression
- Sensing Distance 100 to 300mm
- Resolution / Min Detectable Object .5mm or less
- Light Source Red LED
- Supply Voltage 10 to 30 VDC
- Current Consumption 35mA
- Response Time 0.5ms
- Sensitivity Adjustment 2-turn potentiometer
- Output PNP
- Output Operation Mode LO/DO Switch Selectable
- Material Case/cover ABS (glass reinforced) Lens: PC
- Protection IP67
- Shock Rating 50G
- Temperature -25 to 55° C
- Connection 2 meter cable
- Includes Mounting bracket/screws
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 14 to 21 Days
