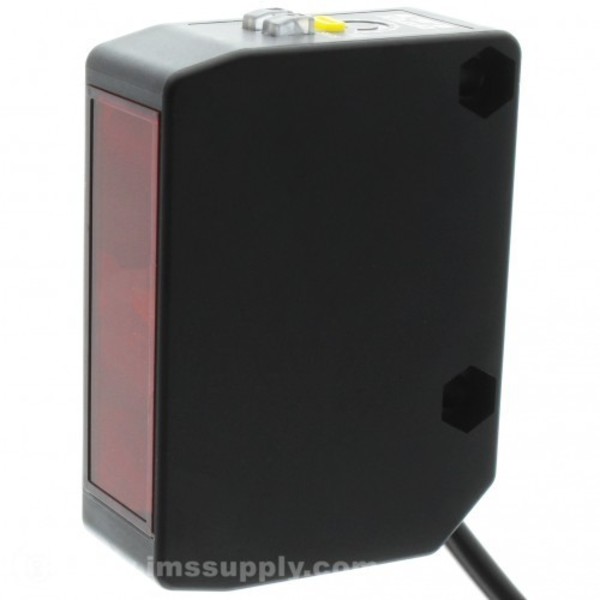

OPTEX BGS-2V30 AC/DC BACKGROUND SUPPRESSION 100 TO 300MM SPDT
Starting At: $132.30
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V30
IMS Product Code: 1779896
Packaging: Sold Individually
Description:
Optex BGS-2V30 AC/DC Background Suppression 100 to 300mm SPDT relay 2M cable
A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.
The BGS-2V30 sensor is capabale of detecting various reflective objects out to 300mm without being influence by background object. Below is a color response chart.
DC24-240V AC24-240V Relay Rated 3amps at 240VAC
Specifications:
- Sensing Mode / Type Background Suppression
- Sensing Distance 100 to 300mm
- Resolution / Min Detectable Object .5mm or less
- Light Source Red LED
- Supply Voltage 24 to 240 Volt AC/DC
- Current Consumption 3VA
- Response Time 15ms
- Sensitivity Adjustment 2-turn potentiometer
- Output SPDT relay 3 amp AC
- Output Operation Mode L/O mode
- Material Case/cover ABS (glass reinforced) Lens: PC
- Protection IP67
- Shock Rating 50G
- Temperature -25 to 55° C
- Connection 2 meter cable
- Includes Mounting bracket/screws
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
