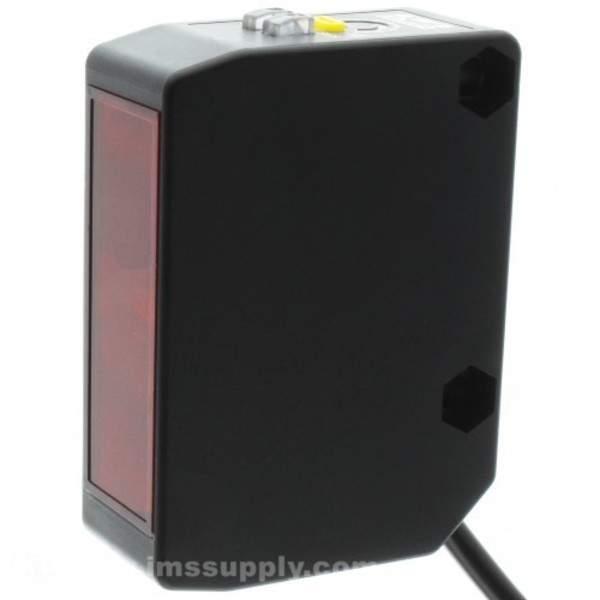

OPTEX BGS-2V100N BACKGROUND SUPPRESSION .25 TO 1M NPN 2M CABLE
Starting At: $122.50
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-2V100N
IMS Product Code: 1779891
Packaging: Sold Individually
Description:
Optex BGS-2V100N Background Suppression .25 to 1M NPN 2M cable
A large projecting and receiving lens result in a strong projected beam. Ideal for use in tough conditions like a foggy atmosphere.
The BGS-2V100 sensor is capabale of detecting various reflective objects out to 1 meter without being influence by background object. Below is a color response chart.
10 to 30VDC with NPN Output. Light ON / Dark ON selected by wiring.
Specifications:
- Sensing Mode / Type Background Suppression
- Sensing Distance 250 to 1,000mm
- Resolution / Min Detectable Object 1mm or less
- Light Source Red LED
- Supply Voltage 10 to 30 VDC
- Current Consumption 35mA
- Response Time 0.5ms
- Sensitivity Adjustment 2-turn potentiometer
- Output NPN
- Output Operation Mode LO/DO Switch Selectable
- Material Case/cover ABS (glass reinforced) Lens: PC
- Protection IP67
- Shock Rating 50G
- Temperature -25 to 55° C
- Connection 2 meter cable
- Includes Mounting bracket/screws
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 35 to 40 Days
