OPTEX BGS-20P BACKGROUND SUPPRESSION 50 TO 180MM PNP 2M CABLE
Starting At: $96.60
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-20P
IMS Product Code: 1779810
Packaging: Sold Individually
Description:

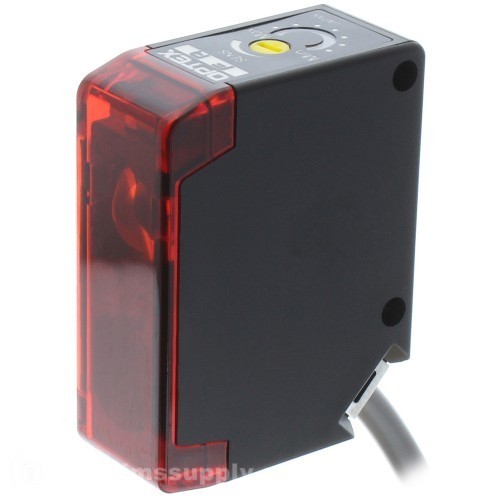

Optex BGS-20P Background Suppression 50 to 180mm PNP 2M cable
The BGS Series utilizes a very focused beam. The beam spot is 10mm in diameter at a 100mm sensing distance. This allows for stable detection even on parts that are sloped or rounded.
The adjustment potentiometer is very sturdy and is very easy to adjust sensitivity
Specifications:
- Sensing Mode / Type Background Suppression
- Sensing Distance 50 to 180mm
- Light Source Red LED
- Supply Voltage 10 to 30 VDC
- Current Consumption 28mA
- Response Time 2ms
- Sensitivity Adjustment Multi-Turn Potentiometer
- Hysteresis 0.05
- Output PNP
- Output Operation Mode LO/DO Switch Selectable
- Protection IP67
- Shock Rating 50G
- Temperature -25 to 55° C
- Connection 2m cable
- Includes Mounting bracket/screws
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
