OPTEX BGS-10CP BACKGROUND SUPPRESSION 40 TO 100MM PNP M8 QD
Quick Overview
Manufactured By: OPTEX
Manufacturer Part Number: BGS-10CP
IMS Product Code: 1779802
Packaging: Sold Individually
Description:

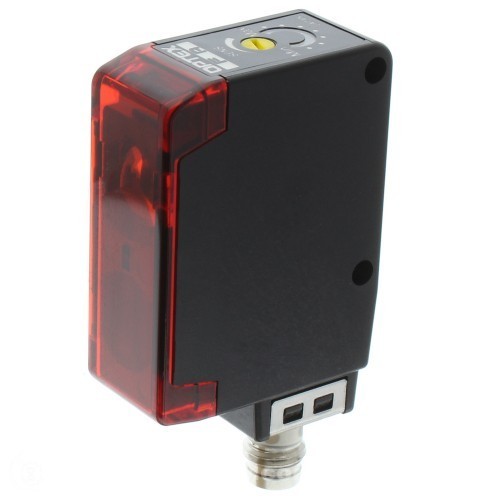

Optex BGS-10CP Background Suppression 40 to 100mm PNP M8 QD
The BGS Series utilizes a very focused beam. The beam spot is 10mm in diameter at a 100mm sensing distance. This allows for stable detection even on parts that are sloped or rounded.
The adjustment potentiometer is very sturdy and is very easy to adjust sensitivity
Specifications:
Sensing Mode / Type Background Suppression
Sensing Distance 40 to 100mm
Light Source Red LED
Supply Voltage 10 to 30 VDC
Current Consumption 28mA
Response Time 2ms
Sensitivity Adjustment Multi-Turn Potentiometer
Hysteresis 0.05
Output PNP
Output Operation Mode LO/DO Switch Selectable
Protection IP67
Shock Rating 50G
Temperature -25 to 55° C
Connection M8 4 pin QD
Includes Mounting bracket/screws
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
