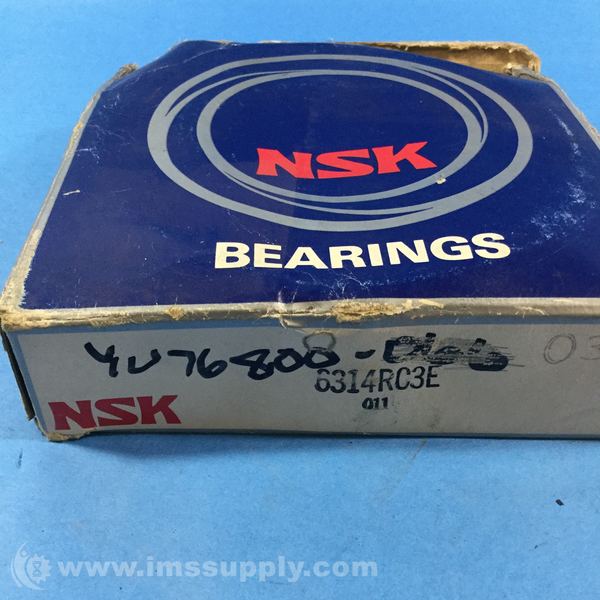

NSK 6314C3 RADIAL/DEEP GROOVE BALL BEARING, ROUND BORE, 70 MM ID
Starting At: $224.25
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6314C3
IMS Product Code: 1809158
Packaging: Sold Individually
Description:
NSK 6314C3 Radial/Deep Groove Ball Bearing, Round Bore, 70 mm ID
Specifications:
- Bore diameter: 70 mm
- Static load capacity: 68000 N
- Outside diameter: 150 mm
- Precision rating: ABEC 1 (ISO Class Normal)
- Overall width: 35 mm
- Finish/coating: Uncoated
- Bore type: Round
- Cage material: Steel
- Closure type: Open
- Outer ring width: 35 mm
- Row type & fill slot: Single Row Non-Fill Slot
- Fillet radius: 2.1 mm
- Internal clearance: C3
- Maximum rpm: 5300 RPM
- Operating temperature range: Maximum of +250 °F
- Series: 63
- Dynamic load capacity: 104000 N
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 59 minutes.
