NIAGARA N85522 END MILL 5/16 IN POINT DIAMETER 30 DEGREE CENTER
Quick Overview
Manufactured By: NIAGARA CUTTER
Manufacturer Part Number: N85522
IMS Product Code: 1790514
Packaging: Sold Individually
Description:

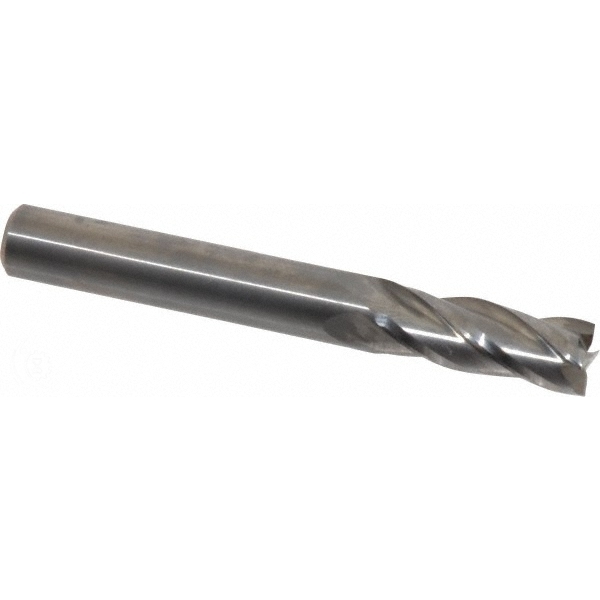

Niagara N85522 End Mill 5/16 In Point Diameter 30 Degree Center Cutting Angle 5/16 In Shank Diameter 4 Flute 13/16 In Cut Length Square End Carbide 2-1/2 In Oal
Specifications:
- Mill Diameter (Inch) 5/16
- Mill Diameter (Decimal Inch) 0.3125
- Number of Flutes 4
- Length of Cut (Inch) 13/16
- Length of Cut (Decimal Inch) 0.8125
- Material Solid Carbide
- Finish/Coating Uncoated
- Shank Diameter (Inch) 5/16
- Single or Double End Single
- Overall Length (Inch) 2-1/2
- Center Cutting Center Cutting
- Flute Direction Right Hand
- Cutting Direction Right Hand
- Flute Type Spiral
- Helix Angle 30.00
- Mill Diameter Tolerance (Decimal Inch) +0.000/-0.002
- Chipbreaker No
- Extended Reach No
- Overall Length Tolerance (Decimal Inch) +0.060/-0.060
- Shank Diameter Tolerance (Decimal Inch) -0.0001/-0.0004
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
