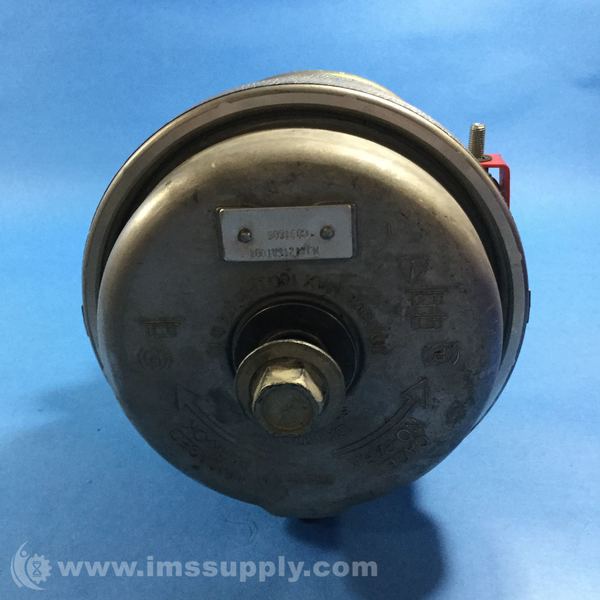

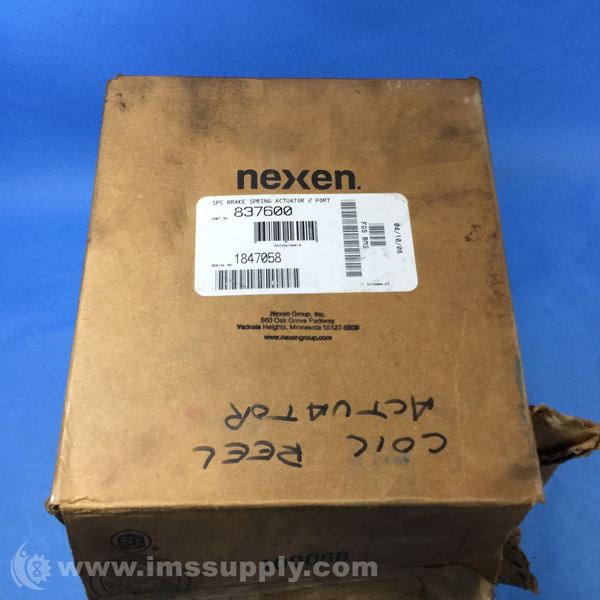

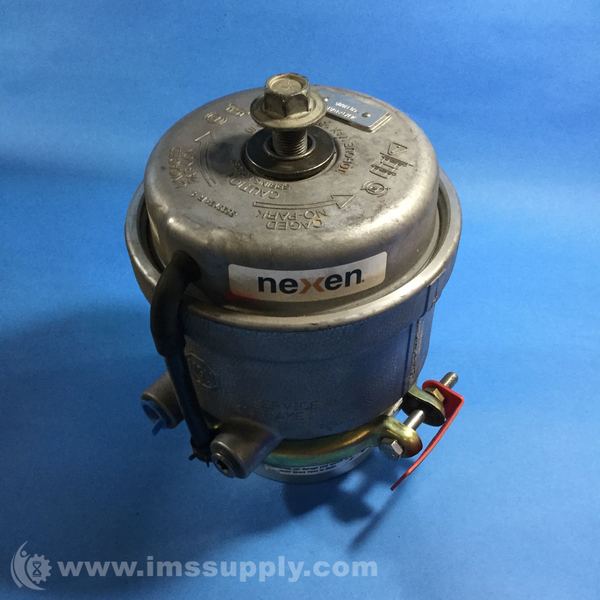

NEXEN GROUP 837600 SPC BRAKE SPRING ACTUATOR

MSRP: $547.39
Starting At: $460.00

Quick Overview

Manufactured By: NEXEN GROUP
Manufacturer Part Number: 837600
IMS Product Code: 983352
Packaging: Sold Individually

Description:

Nexen Group 837600 SPC Brake Spring Actuator

Specifications:

  • 2-Port Caliper Brakes
  • Brake Series: Single Post Caliper
  • Static Torque Factor (Out Of Box): SPC8=1900, SPC12=2800, SPC20=4700 lb-ft @ 0 psi
  • Engagement/Release: Spring/Air
  • Brake Response Factor: 0.312
  • Maximum Static Brake Torque: 50000 in-lbs With A 24.000" Disc
  • Maximum Pressure: 80 psi
  • Brake Facing Type: Standard Coefficient
  • Minimum Release Pressure: 70 psi
  • Mounting Configuration: Foot Mounted
  • Brake Air Chamber Volume: 41.600 in³
  • Port Size: 3/8 NPT
  • Finish: Bare Aluminum
  • Ratings: CE, and RoHS
  • Function: Stopping, Holding, Tensioning
  • Brake Facing Edge Color Code: Red
  • Recommended Control: 940019 (4-Way N.C. 50-100 PSI), 940020 (4-Way N.C. 30-100 PSI)
  • Approximate Brake Facing Life: 845 hp/hr
  • Brake Facing Effective Area: 31.0 in²
  • Brake Peak Thermal Input Rate: 77.00 hp
  • Disc Thickness: 0.5"
  • Disc Working Radius (in.): WR=D/2-1.437 For 12.000 in. or Larger Discs
