MITSUBISHI YS-10NAA AMP METER
Quick Overview
Manufactured By: MITSUBISHI
Manufacturer Part Number: YS-10NAA
IMS Product Code: 1810826
Packaging: Sold Individually
Description:

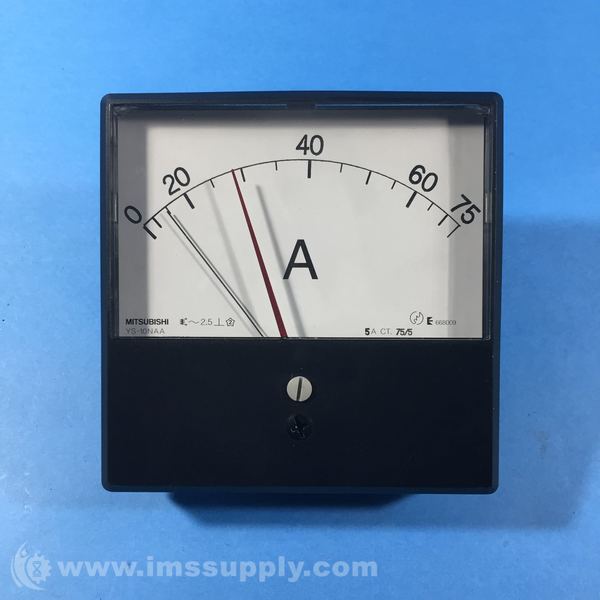

Mitsubishi YS-10NAA Amp Meter
Specifications:
- Operating Principle: Moving-iron type
- Dimensions A (mm): 41
- Scale Plate: (Background) white
- Class (grade): 2.5
- Dimension (mm): 102x102
- Standard: Direct-acting electrical indicating meter JIS C1102-2, JIS C1102-3, JIS C1102-4, JIS C1102-5, JIS C1102-7
- Withstand Voltage: 5 seconds or less 2210V: Rated voltage: 600V below: 3320V 5 seconds CT combination
- Test Voltage: 5 seconds or less 2210V: Rated voltage: 600V below: 3320V 5 seconds CT combination
- Insulation Resistance (Mohm): (Outer box between the electrical circuit) more than 10
- Operating Temperature Range (deg C): -5 to 50(standard23)
- Instrument Rating: 5 Amp
- Scale (mm): 90
- Standard guidelines: Nothing
- Cover: (Munsell N1.5 semi-gloss) black
- Power Consumption (VA): 1
