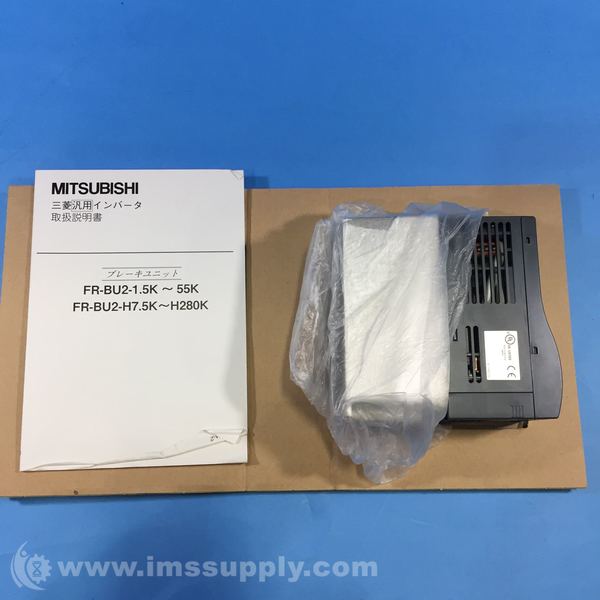

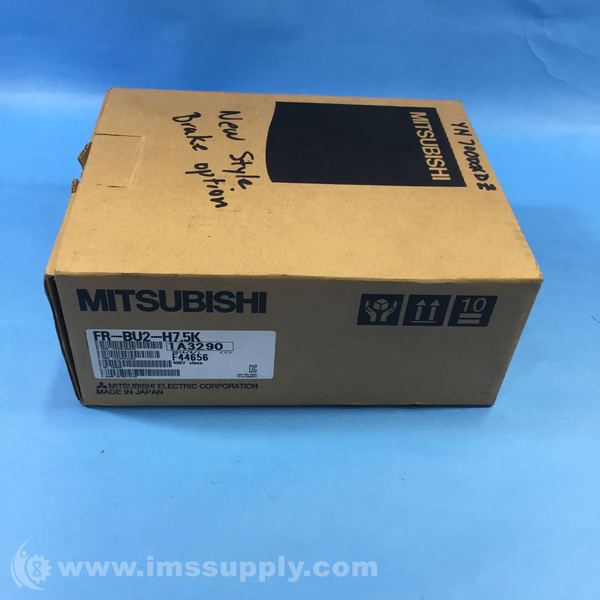

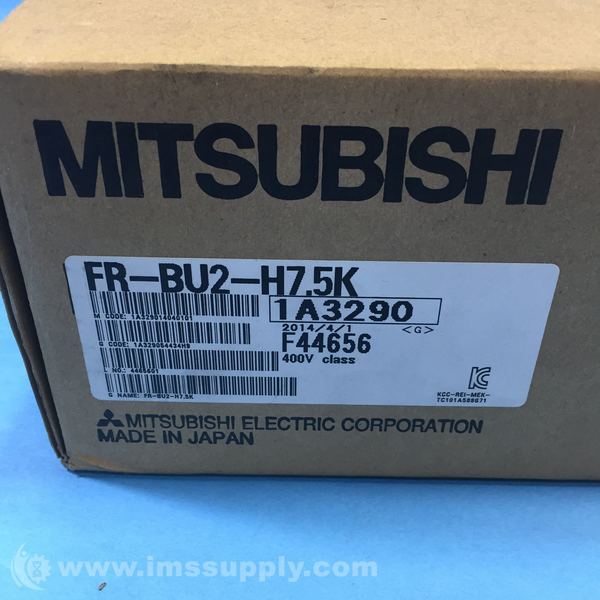

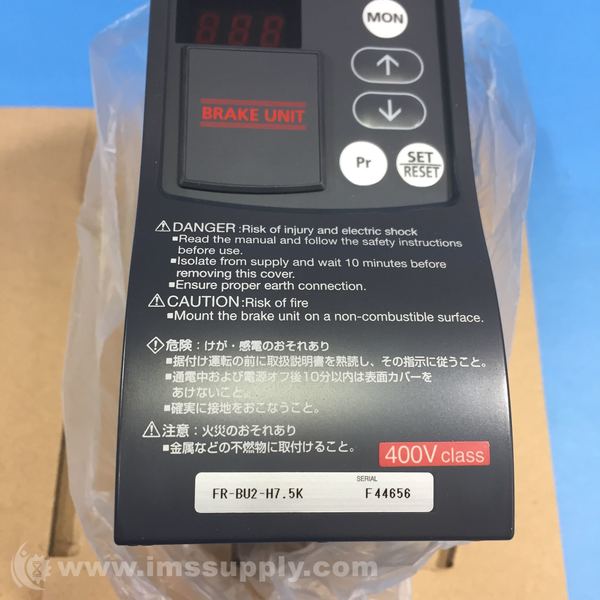

MITSUBISHI FR-BU2-H7.5K BRAKE UNIT
Quick Overview
Manufactured By: MITSUBISHI
Manufacturer Part Number: FR-BU2-H7.5K
IMS Product Code: 1846309
Packaging: Sold Individually
Description:
Mitsubishi FR-BU2-H7.5K Brake Unit for 2.2kW to 7.5kW 400V Inverter Drive
Rating:
50% Duty x 30 seconds for 5.5kW and 7.5kW 400V Inverter Drives, subject to a suitable external resistor.
100% Duty x 30 seconds for 2.2kW and 3.7kW 400V Inverter Drives, subject to a suitable external resistor.
DC Bus Voltage: 800V Maximum.
Minimum External Resistance: 60 Ohm for maximum braking torque (not supplied) - see the linked products below or use the 'Which Resistor' button on this page.
Dimensions: 68mm waide x 128mm high x 133mm Deep.
Mounting: via 5mm diameter holes at 56mm x 118mm.Protection: IP00
Weight: 0.9Kg
Enclosure: IP00
Rated at 40C Ambient.
