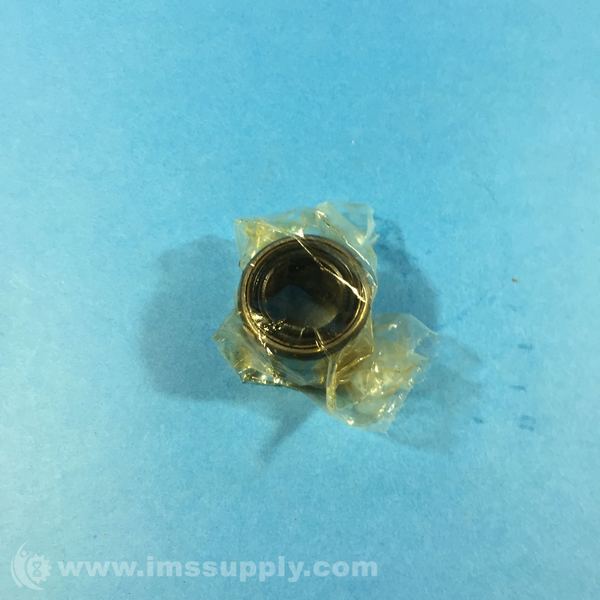

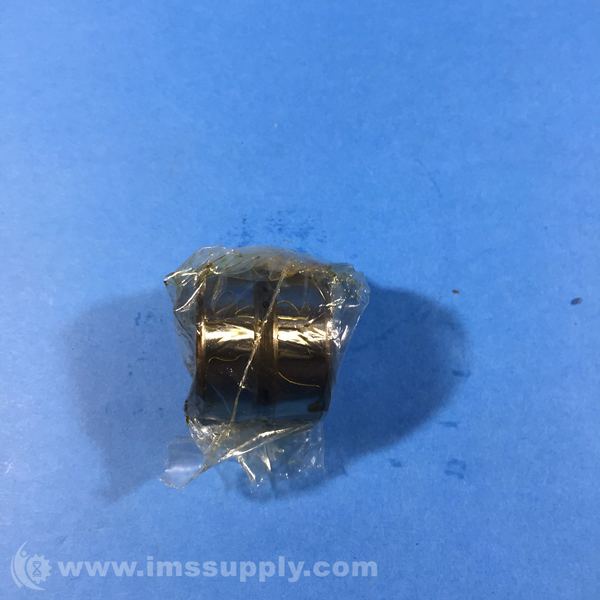

MCGILL MR-12-RSS NEEDLE ROLLER BEARING, 0.7500 IN BORE
Quick Overview
Manufactured By: MCGILL
Manufacturer Part Number: MR-12-RSS
IMS Product Code: 1802947
Packaging: Sold Individually
Description:
McGill MR-12-RSS Needle Roller Bearing, 0.7500 in Bore, 1.2500 in OD, 1.0000 in Width, Double Sealed
Specifications:
- Bore diameter: 0.7500 in
- Maximum rpm: 5100 RPM
- Outside diameter: 1.2500 in
- Fillet radius: 0.0400 in
- Overall width: 1.0000 in
- Flanges: No Flange
- Needle bearing type: Machined Bearing with No Inner Ring
- Seal material: Rubber
- Closure type: Double Sealed
- Series: MR - Cagerol
- Number of rows: 1
- Lubrication hole type: Lubrication Groove & Hole
- Bearing material: Chrome Steel
- Precision rating: Not Rated
- Operating temperature range: -20F to 250 °F
- Compatible inner ring: MI 8
- Cage material: Steel
- Standards met: ABMA, ISO
- Dynamic load capacity: 4990 lbs
- Static load capacity: 5400 lbs
