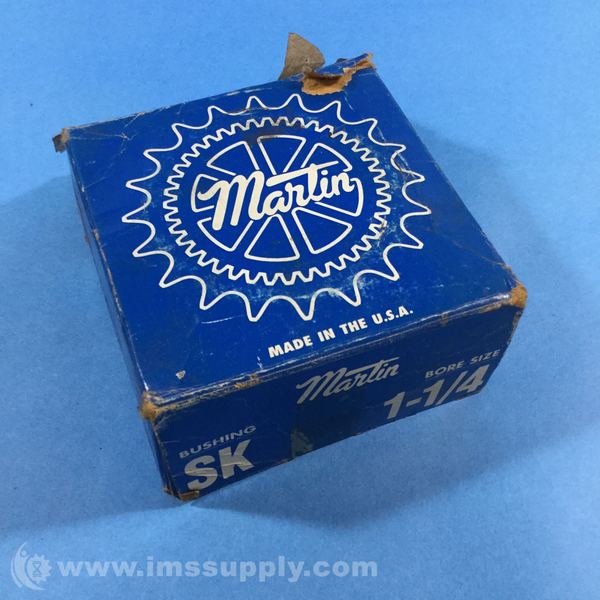

MARTIN SK 1-1/4 QUICK DISCONNECT BUSHING - SK BUSHING, 1.2500 IN
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: SK 1-1/4
IMS Product Code: 1792077
Packaging: Sold Individually
Description:
Martin SK 1-1/4 Quick Disconnect Bushing - SK Bushing, 1.2500 in Bore, Finished w/ Keyway, Material: Cast Iron
Specifications:
- Bore diameter: 1.2500 in
- Screw torque: 180 in-lbs
- Flange outside diameter: 3.8750 in
- Barrel diameter: 2.812 in
- Flange thickness: 0.5625 in
- Barrel length: 1-3/8 in
- Length through bore: 1.1250 in
- Bolt circle diameter: 3-5/16 in
- Bushing size: SK
- Number of bolt holes: 3
- Bore type: Finished w/ Keyway
- Screw thread size: 5/16-18 in
- Keyway size: 1/4 x 1/8 in
- Screw length: 2 in
- Material: Cast Iron
- Mounting type: Reverse
