MARTIN SD 1-3/8 QUICK DISCONNECT BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: SD 1-3/8
IMS Product Code: 1792081
Packaging: Sold Individually
Description:

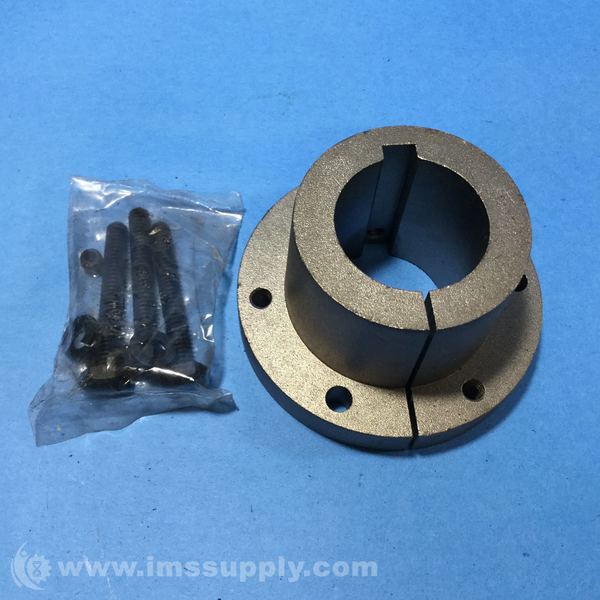

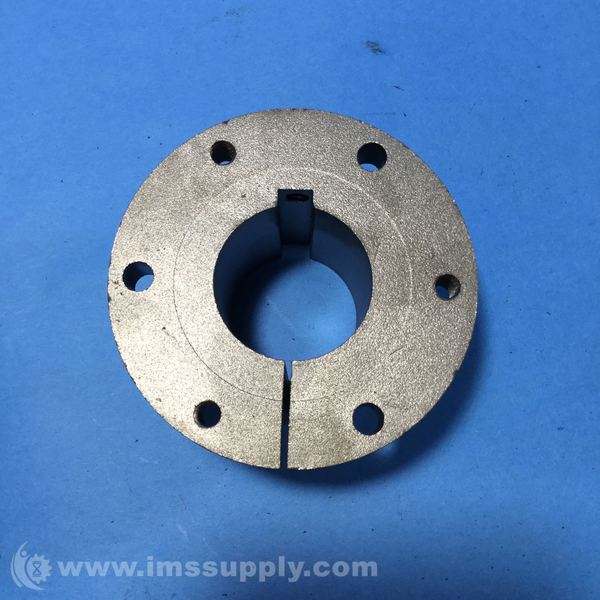

Martin SD 1-3/8 Quick Disconnect Bushing
Specifications:
- Bore Diameter: 1.375 in
- Screw Torque: 108 in-lbs
- Flange Outside Diameter: 3.1875 in
- Barrel Diameter: 2.187 in
- Flange Thickness: 0.5 in
- Barrel Length: 7/8 in
- Length Through Bore: 1.3125 in
- Bolt Circle Diameter: 2-11/16 in
- Bushing Size:SDS
- Number Of Bolt Holes: 3
- Bore Type: Finished w/ Keyway
- Screw Thread Size:1/4-20 in
- Keyway Size: 5/16 x 5/32 in
- Screw Length: 1-3/8 in
- Material: Cast Iron
- Mounting Type: Reverse
