MARTIN S832 EXTERNAL TOOTH SPUR GEAR, 8 DP, PRESSURE ANGLE
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: S832
IMS Product Code: 1791850
Packaging: Sold Individually
Description:

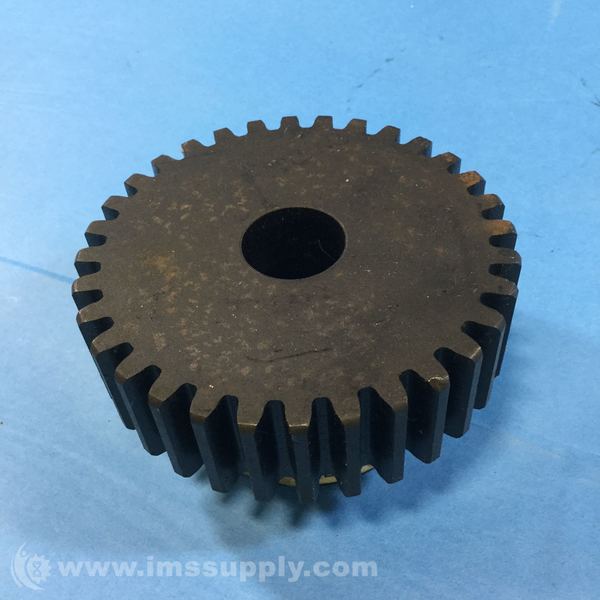

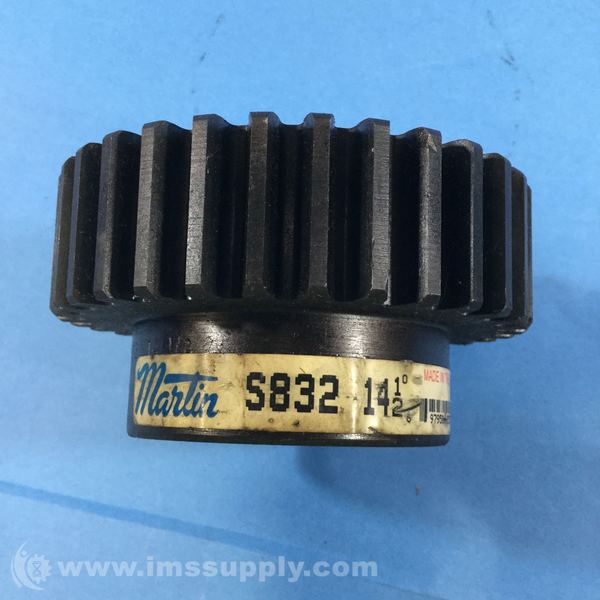

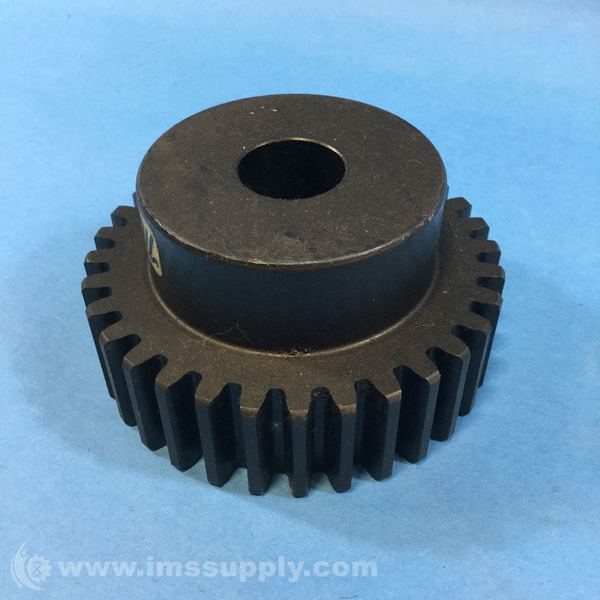

Martin S832 External Tooth Spur Gear, 8 DP, 14.5 ° Pressure Angle
Specifications:
- Diametral pitch: 8
- Material: Steel
- Pressure angle: 14.5 °
- Pitch diameter: 4 in
- Face width: 1-1/4 in
- Hub diameter: 2-7/8 in
- Number of teeth: 32
- Gear construction: Plain
- Outside diameter: 4-1/4 in
- Overall width: 2-1/4 in
- Bore type: Rough Stock
- Hub projection: 1 in
- Bore diameter: 1 to 1-13/16 in
- Standards met: ANSI Standard B15.1
- Hub type: Hub w/ No Screw
