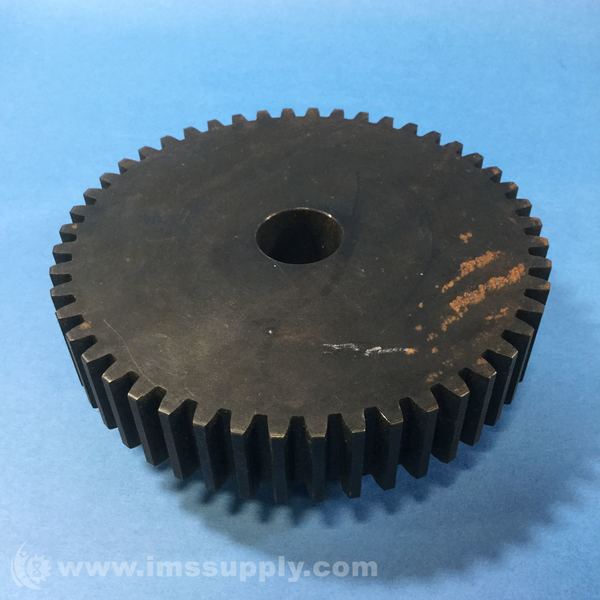

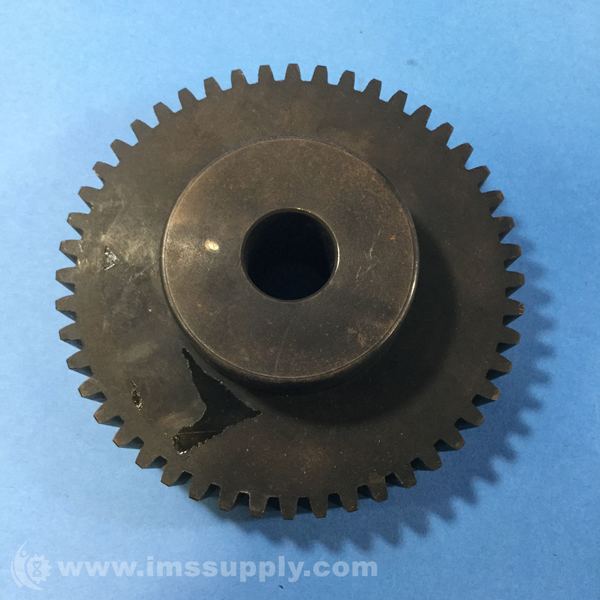

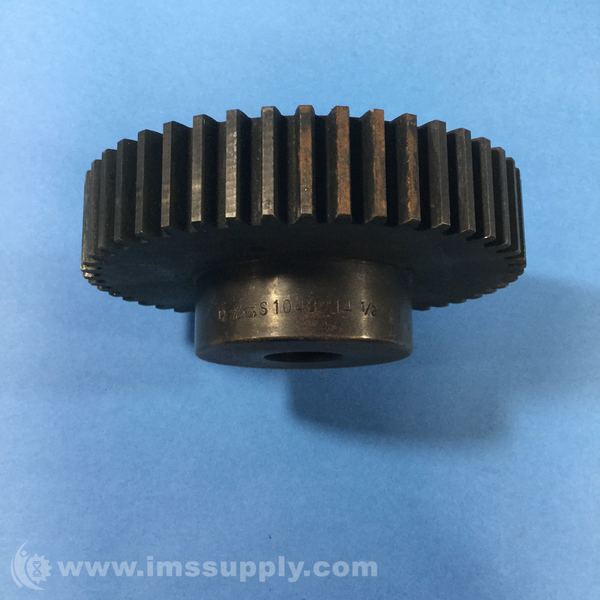

MARTIN S1048 14-1/2 STEEL SPUR GEAR

Call For Quote

Quick Overview

Manufactured By: MARTIN
Manufacturer Part Number: S1048
IMS Product Code: 1792200
Packaging: Sold Individually

Description:

Martin S1048 14-1/2 Steel Spur Gear

Specifications:



  • Material: Steel
  • Bore Type:  Reborable
  • Diametral Pitch: 10
  • Set Screw Size: NONE in.
  • Pressure Angle: 14.500 deg.
  • Set Screw Location: None
  • Number of Teeth: 48
  • Hub Outside Diameter: 2.500 in.
  • Pitch Diameter: 4.800 in.
  • Hub Projection: 0.875 in.
  • Outside Diameter: 5.000 in.
  • Storage Dimension Length: 5.000 in.
  • Weight: 5.90 lbs.
  • Storage Dimension Width: 5.000 in.
  • Storage Dimension Height: 1.880 in.
