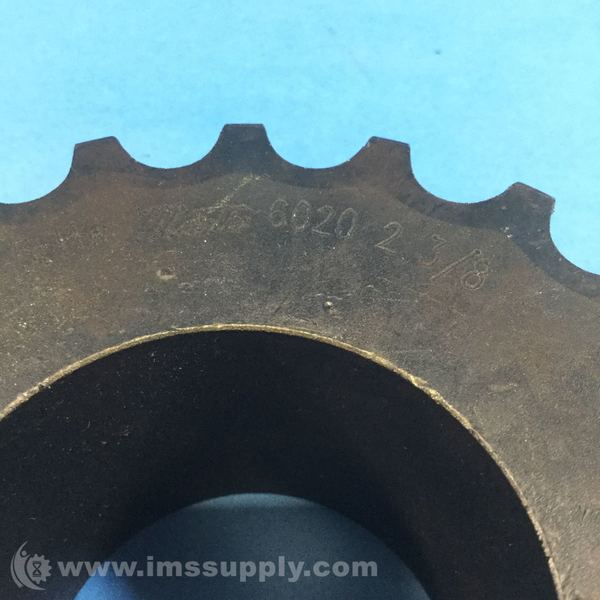

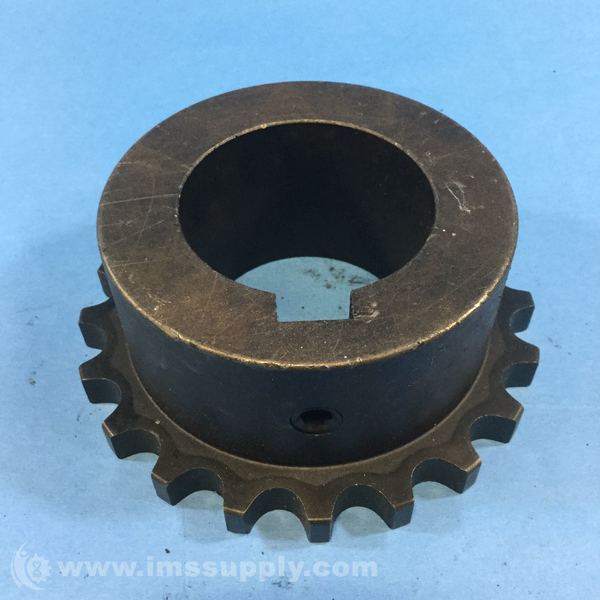

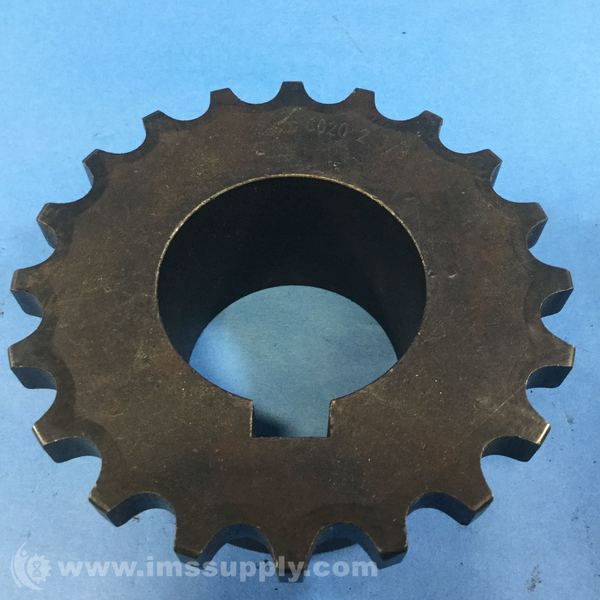

MARTIN 6020 2 3/8 CHAIN COUPLING HUB - 60 CHAIN, 20 TEETH
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 6020 2 3/8
IMS Product Code: 1792156
Packaging: Sold Individually
Description:
Martin 6020 2 3/8 Chain Coupling Hub - 60 Chain, 20 Teeth, 2.3750 in Bore, Finished w/ Keyway & SS, Material: Steel
Specifications:
- Chain number: 60
- Hub diameter: 3-7/8 in
- Number of teeth: 20
- Hub length: 2 in
- Bore type: Finished w/ Keyway & SS
- Length between sprockets: 7/16 in
- Bore diameter: 2.3750 in
- Set screw type: One over Keyway
- Outside diameter: 5.5000 in
- Maximum rpm: 2500 RPM
- Coupling overall length: 4.4375 in
- Keyway size: 5/8 x 5/16 in
- Material: Steel
