MARTIN 40BS15 7/8 FINISHED BORE SPROCKET - 40 / 1/2 IN, FINISHED
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 40BS15 7/8
IMS Product Code: 1792612
Packaging: Sold Individually
Description:

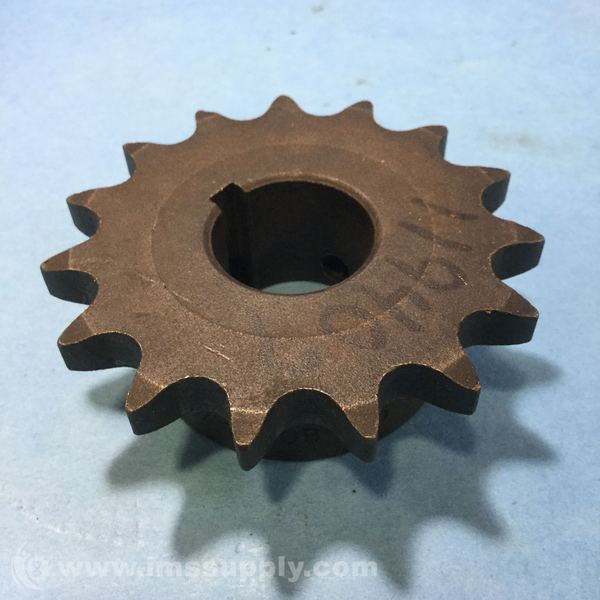

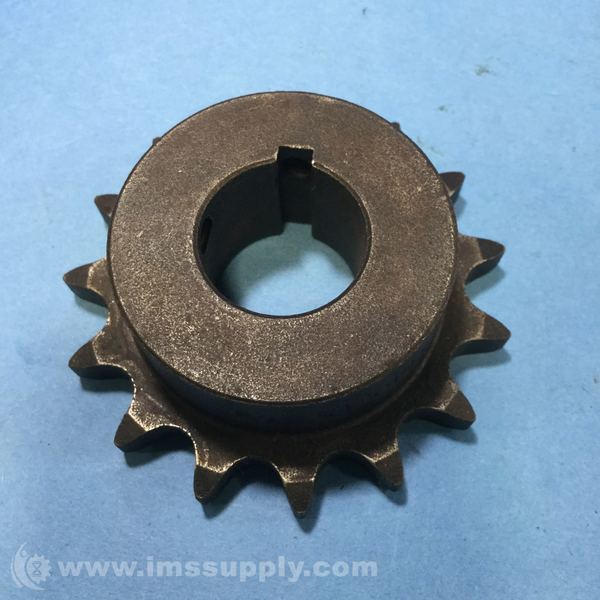

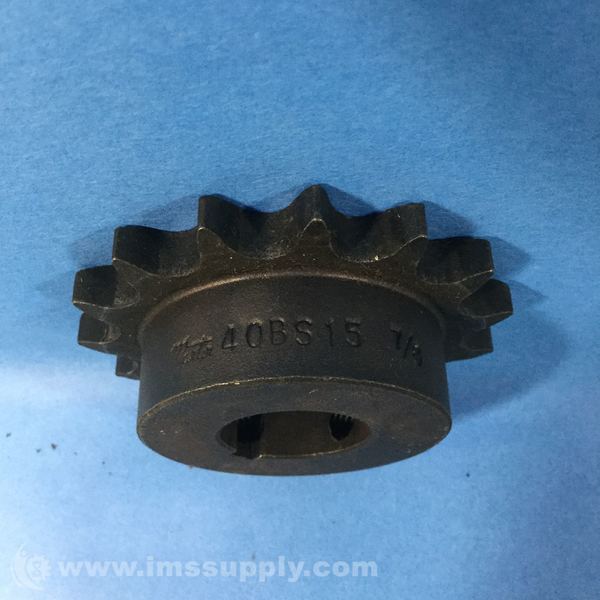

Martin 40BS15 7/8 Finished Bore Sprocket - 40 / 1/2 in, Finished w/ Keyway, 7/8 in Bore , 15 Teeth, Steel
Specifications:
- Number of teeth: 15
- Number of hubs: 1
- Bore diameter: 7/8 in
- Pitch type: Single
- Length through bore: 7/8 in
- Tooth width: 0.284 in
- Outside diameter: 2.65 in
- Pitch diameter: 2.405 in
- Chain number & pitch: 40 / 1/2 in
- Hub diameter: 1-13/16 in
- Bore type: Finished w/ Keyway
- Keyway size: 3/16 x 3/32 in
- Number of strands across: 1
- Hardened teeth: Non-Hardened Teeth
- Material: Steel
