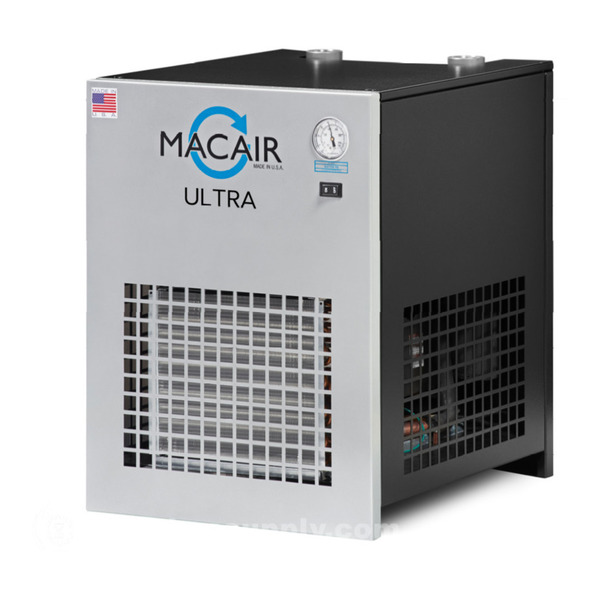

MACAIR UA75A ULTRA SERIES NON-CYCLING AIR DRYER 208-230V 1PH 60HZ
Quick Overview
Manufactured By: MACAIR
Manufacturer Part Number: UA75A-208-230V-1PH-60HZ
IMS Product Code: 1792861
Packaging: Sold Individually
Description:
MACAIR UA75A Ultra Series Non-Cycling Air Dryer 208-230v 1ph 60hz
MECHANICAL SPECS
- Inlet Air Flow: 75 SCFM
- Inlet Temp: 100 / 140 F
- Inlet Pressure: 100 PSIG
- Inlet Temp: 100 F
- DEWPOINT TEMP: 38 F
- COOLING AIR FLOW: 230 CFM
- PRESSURE LOSS, DESIGN: 2.7
- CONDENSER TYPE: Air Cooled
- WEIGHT: 180 LBS

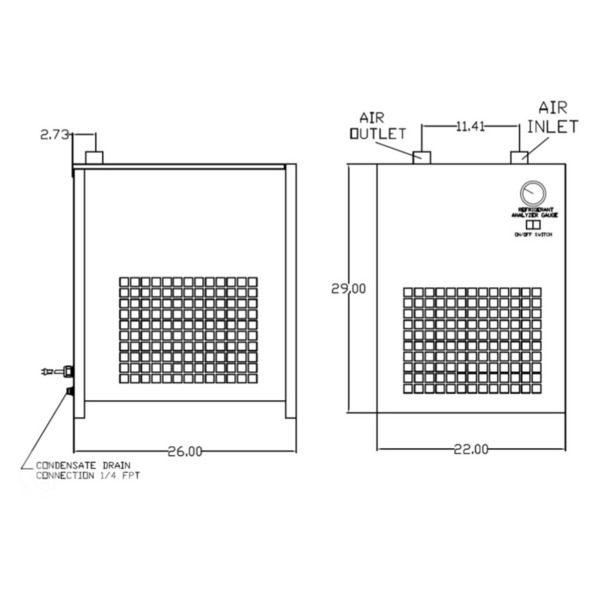

- IN & OUT CONNECTION: 1” FPT
- DRAIN CONNECTION: 1/4” FPT
- MAXIMUM AMBIENT TEMP: 110 F
- MINIMUM AMBIENT TEMP: 40 F
- MAXIMUM AIR PRESSURE: 232 PSIG
ELECTRICAL SPECS
- Locked Rotor Amps: 40
- Rated Load Amps: 8.2
- Max Fuse: 15
- Power Connection: 115-1-60
- Full Load Power (WATTS): 935
STANDARD FEATURES
- Aluminum block heat exchanger
- Air to air pre-cooler/re-heater
- Stainless Steel mesh separator
- Tecumseh Compressor
- Suction Pressure Gauge
- On-Off Switch
- Compressor Overload
- Heavy duty industrial powder coated steel cabinet
- Environmentally friendly R134a refrigerant
- Refrigerant access ports
- Expansion valve
- Hot Gas Bypass Valve
- Filter Drier
- Programmable electronic drain valve with y-strainer
- Easy access cabinet design allows for ease of service.
- 9 foot power cord and plug
OPTIONAL FEATURES
- Pre-filter and after-filters mounted on the dryer
- 230-1-60 voltages
- Additional pressure and temperature gauges
- Mounting Brackets
