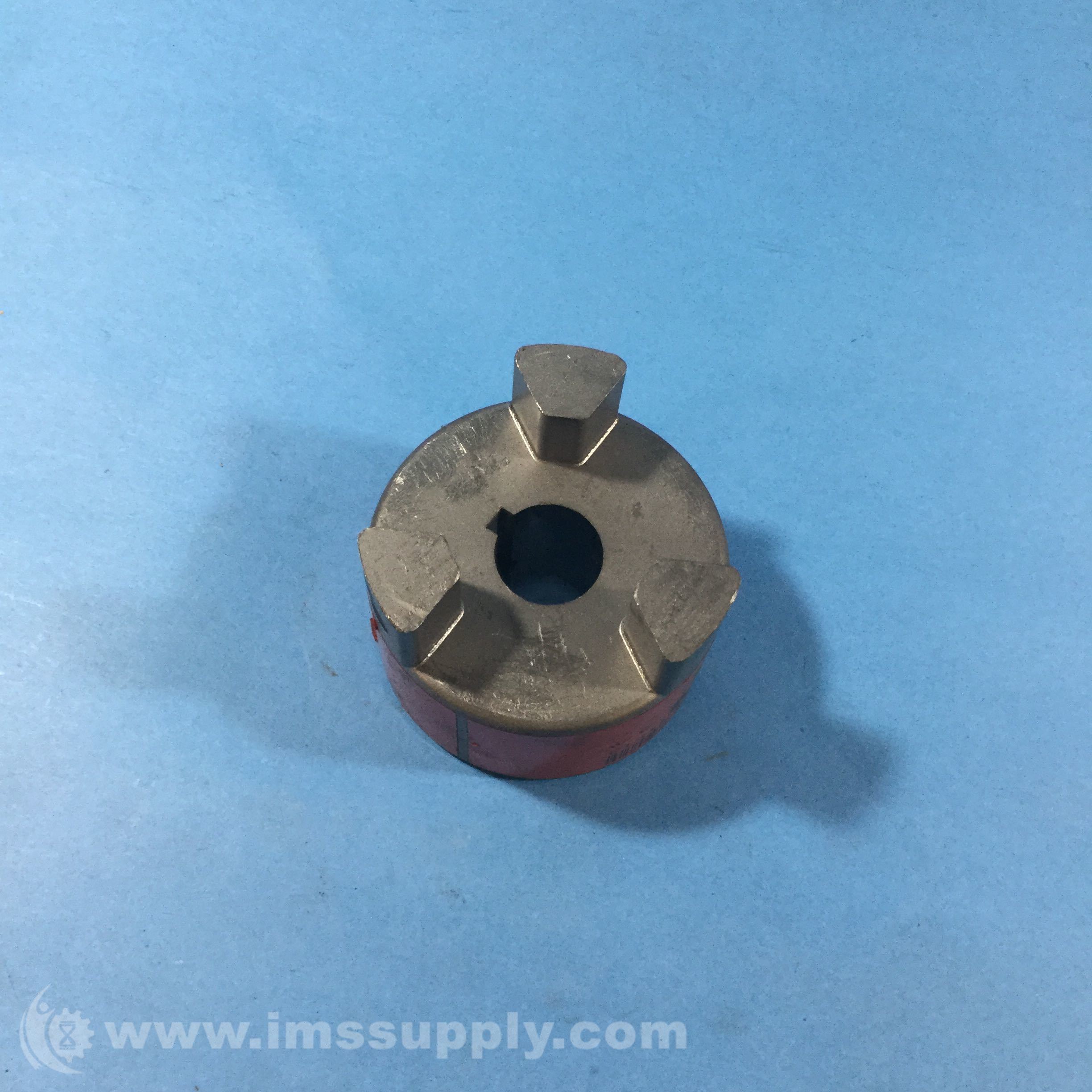

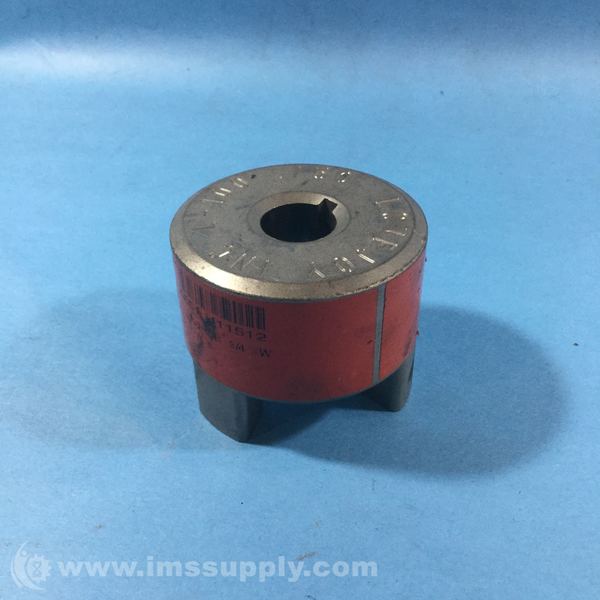

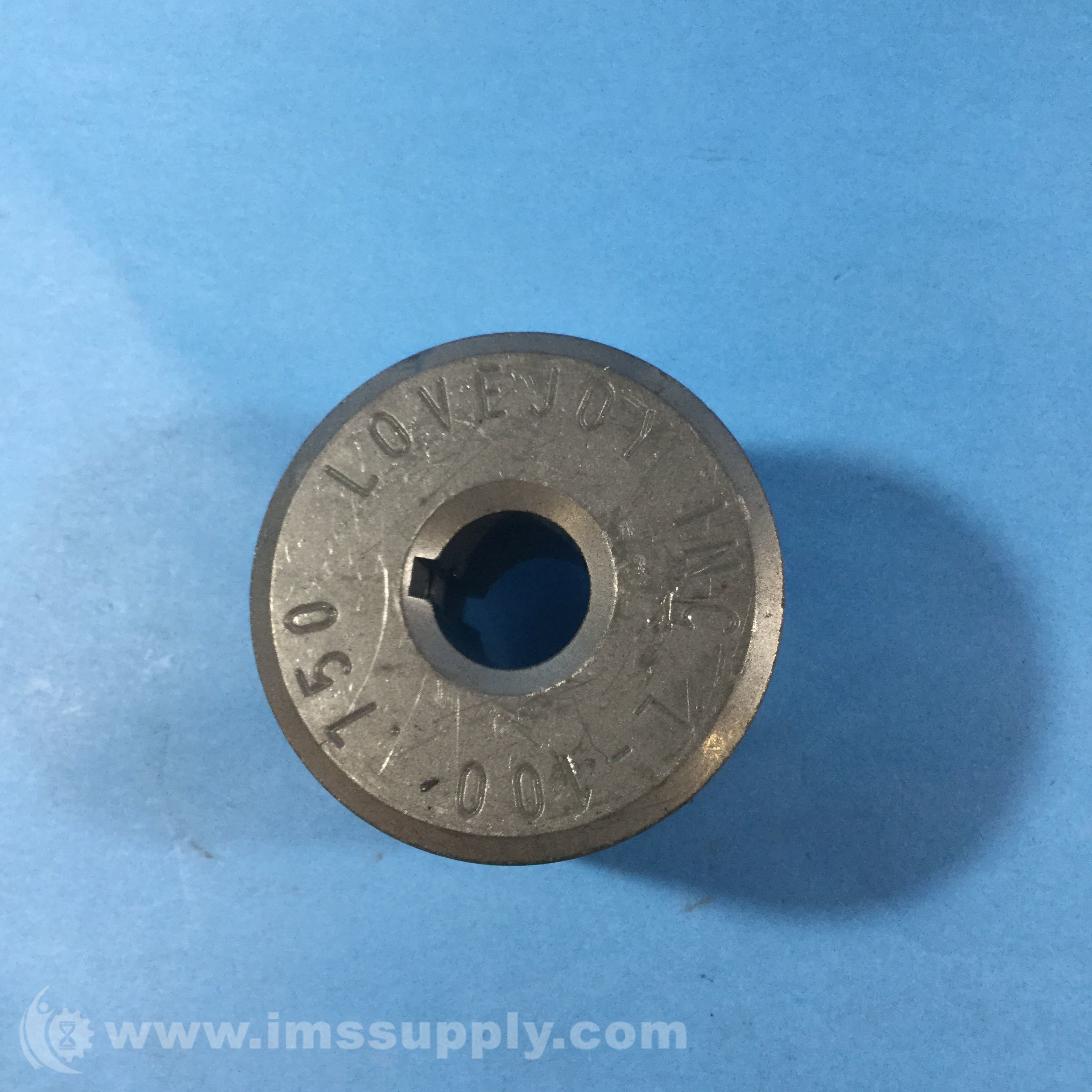

LOVEJOY L-100 .750 JAW COUPLING HUB
Quick Overview
Manufactured By: LOVEJOY
Manufacturer Part Number: L-100 .750
IMS Product Code: 1814497
Packaging: Sold Individually
Description:
Lovejoy L-100 .750 Jaw Coupling Hub
Specifications:
- Hub end diameter: 2.54 inch
- Bore type: Finished w/ Keyway
- Torque capacity: 1134 in-lbs
- Bore diameter: 0.750 inch
- Maximum rpm: 3,600 (Thermoplastic Elastomer) RPM, 7,000 (Nitrile) RPM
- Jaw type: Straight
- Screw clamp type: Set Screw
- Hub material: Iron
- Outside diameter: 2.5400 inch
- Length through bore: 1.3800 inch
- Coupling overall length: 3.4800 inch
