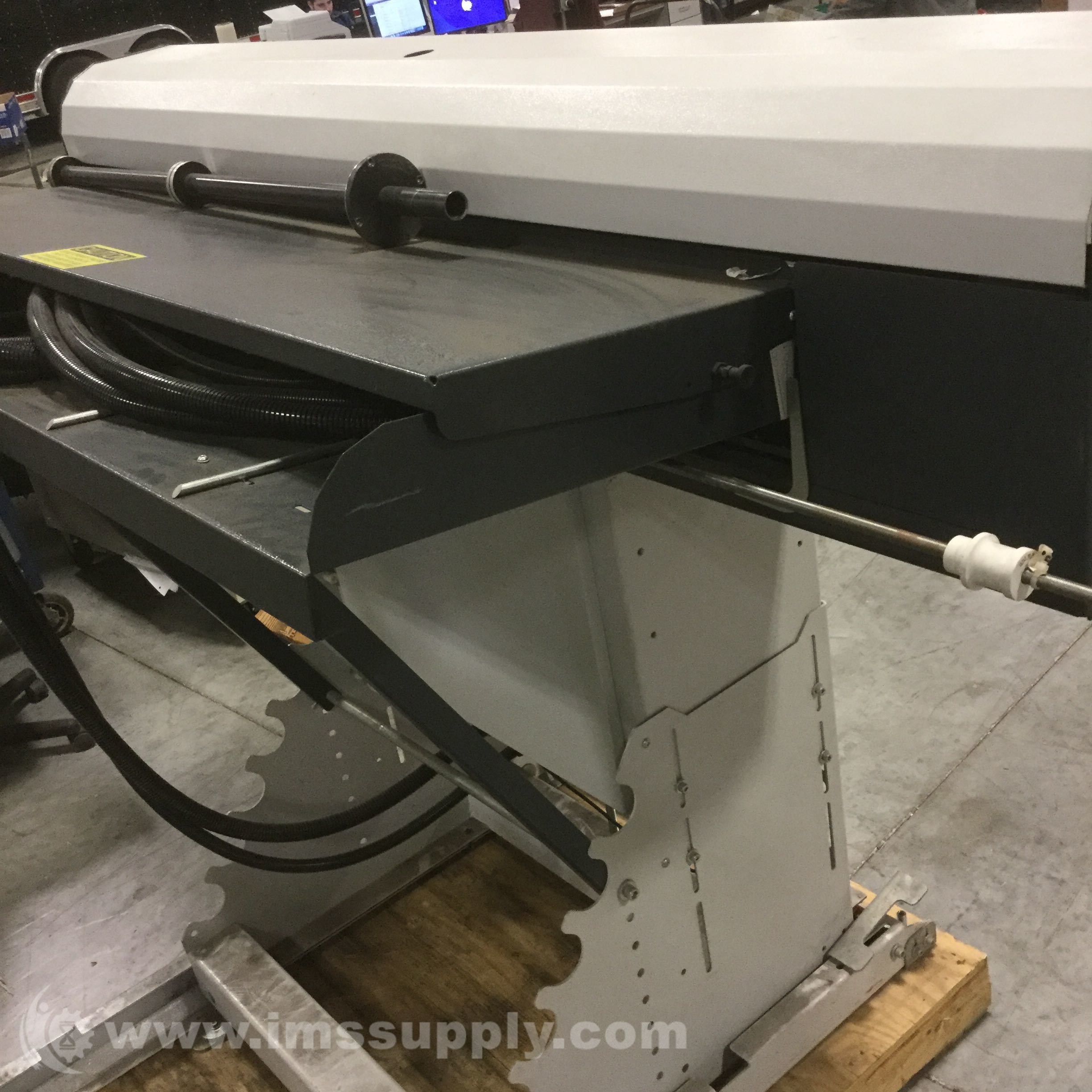

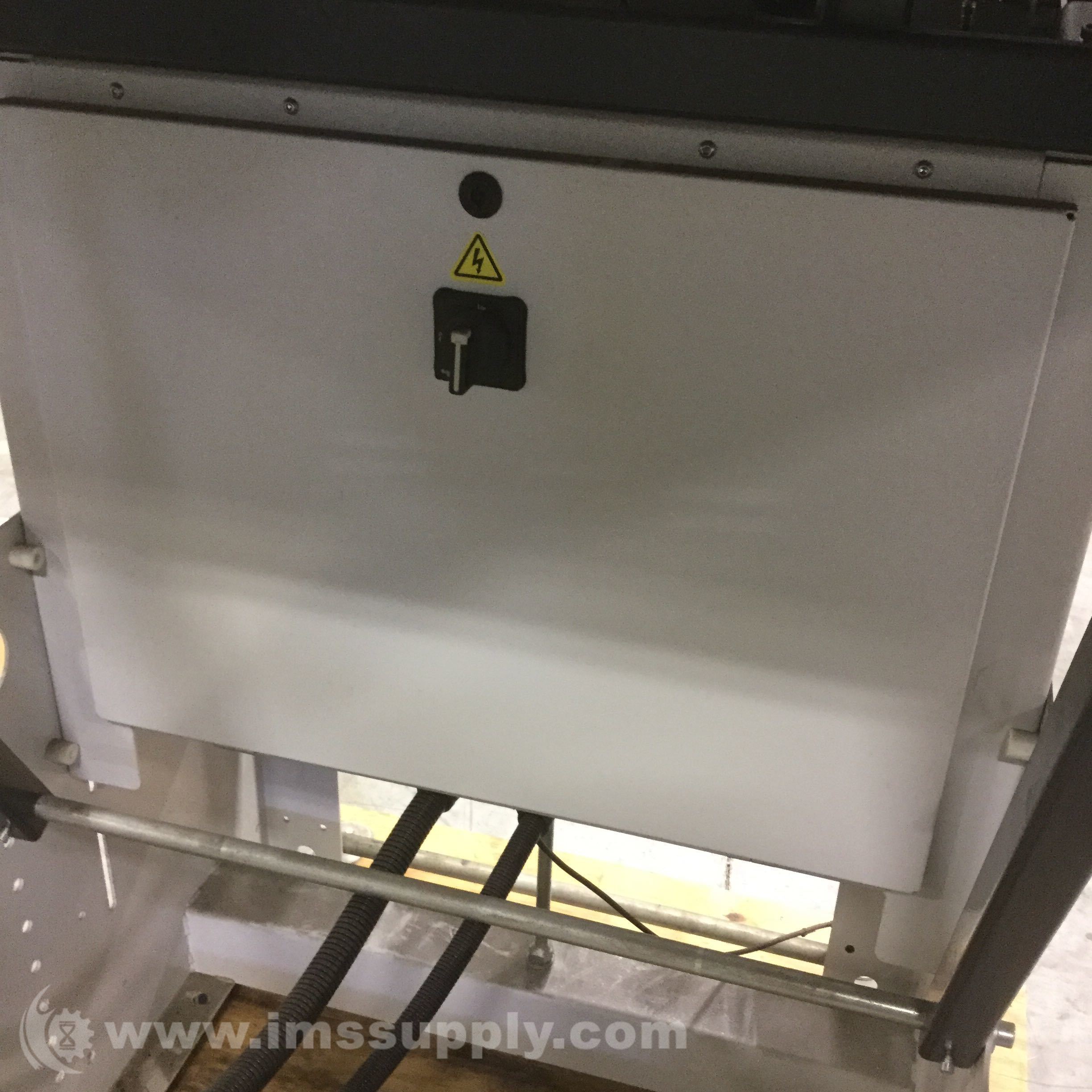

LNS AMERICA QUICK LOAD SERVO 80 AUTOMATIC MAGAZINE BAR FEEDER

Call For Quote

Quick Overview

Manufactured By: LNS AMERICA
Manufacturer Part Number: QUICK LOAD SERVO 80
IMS Product Code: 1760676
Packaging: Sold Individually

Description:

LNS America Quick Load Servo 80 Automatic Magazine Bar Feeder Loads Short Bars

Specifications:

  • Diameter: ø 1/4 - 3-1/8'' (6-80 mm)
  • Bar length: 14'' - 63'' (350 – 1600 mm)
  • (limited to headstock length)
  • Loading system: Side load rack
  • Loading capacity: 26'' (650 mm)
  • Loading: Front/rear
  • Headstock type: Fixed / Traveling
  • X or Z axis retraction: 23'' (600 mm)
  • Diameter set up: 15 sec (automatic)
  • Total changeover: 1 min (for pusher)
  • Motor: Servo
  • Drive: Notched belt
  • Parts library: 500 parts program storage
  • The Quick Load Servo 80 S2 automatic magazine loader accommodates bar lengths ranging from 14" to 63" (not to exceed the spindle length) and diameters ranging from 1/4" to 3 1/8" (6 to 80 mm).

Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.

Shipping Times Provided In Quote

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of LNS America. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
