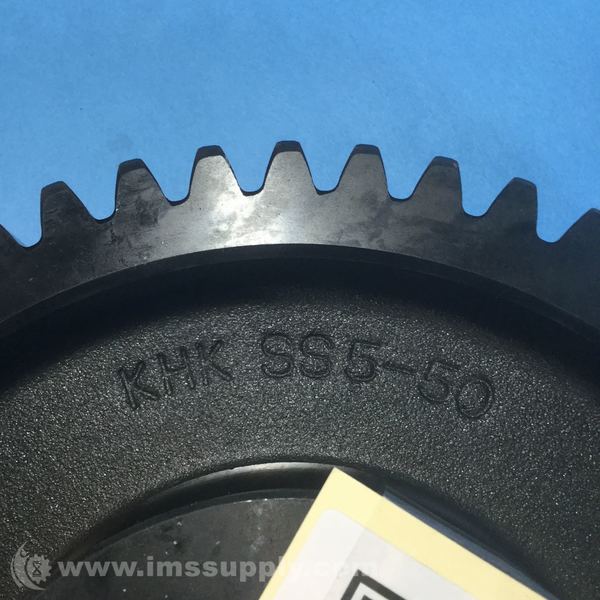

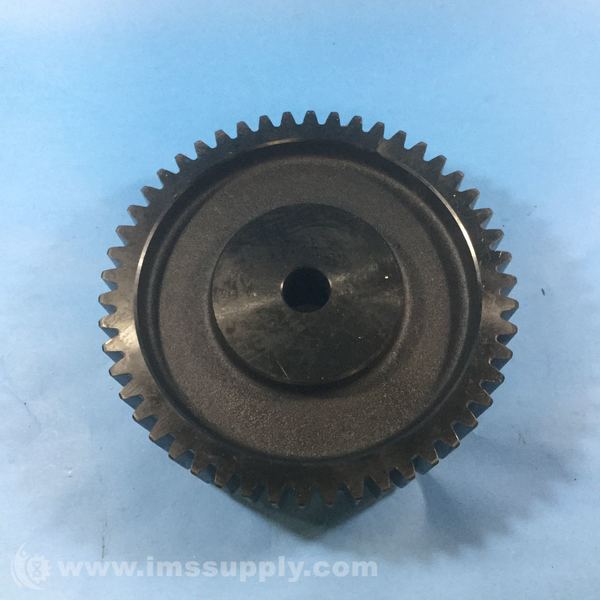

KHK GEARS SS5-50 MODULE 5, 50 TOOTH, CARBON STEEL SPUR GEAR

MSRP: $495.37
Starting At: $258.75

Quick Overview

Manufactured By: KHK GEARS
Manufacturer Part Number: SS5-50
IMS Product Code: 1771570
Packaging: Sold Individually

Description:

KHK SS5-50 Module 5, 50 Tooth, Carbon Steel Spur Gear

Specifications:

  • Gear Type: Spur Gears
  • Construction: Carbon Steel Spur Gears
  • Bore Type: Plain
  • Module: 5
  • No. of teeth: 50
  • Shape: S4
  • Bore (A): 30.0 (mm)
  • Hub Diameter (B): 120.0 (mm)
  • Pitch Diameter (C): 250.0 (mm)
  • Outer Diameter (D): 260.0 (mm)
  • Face Width (E): 50.0 (mm)
  • Hub Width (F): 21.0 (mm)
  • Total Length (G): 71.00 (mm)
  • Web Thickness (H): 16.0 (mm)
  • Web O.D. (I): 212.0 (mm)
  • Bending Strength (N-m): 2,030.0000
  • Surface Durability (N-m): 294.0000
  • Bending Strength (kgf-m): 207.0000
  • Surface Durability (kgf-m): 30
  • Backlash: 0.28-0.58 (mm)
  • Weight: 15.00 (kg)
  • Precision Grade: JIS grade N8 (JIS B1702-1:1998) JIS grade 4 (JIS B1702:1976)
  • Gear Teeth Type: Standard full depth
  • Pressure Angle: 20°
  • Material: S45C (AISI 1045) Carbon Steel
  • Tooth Hardness: (less than 194HB)

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.

Availability: 1 In Stock

Ships today if ordered in the next 9 hours and 59 minutes.
